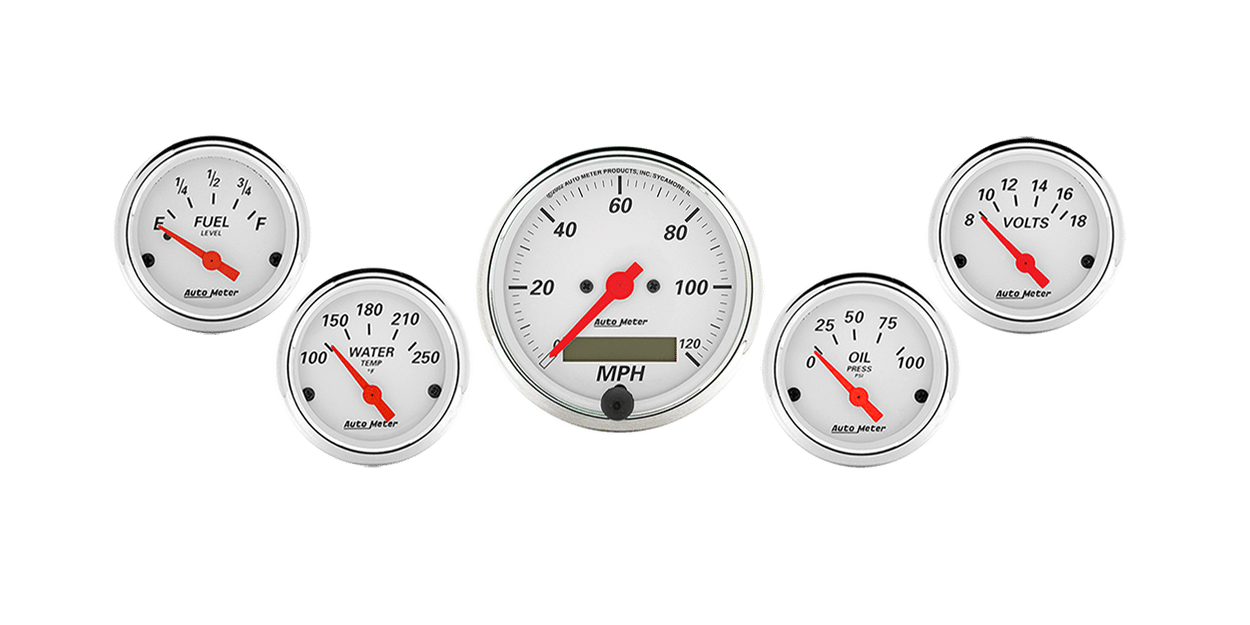

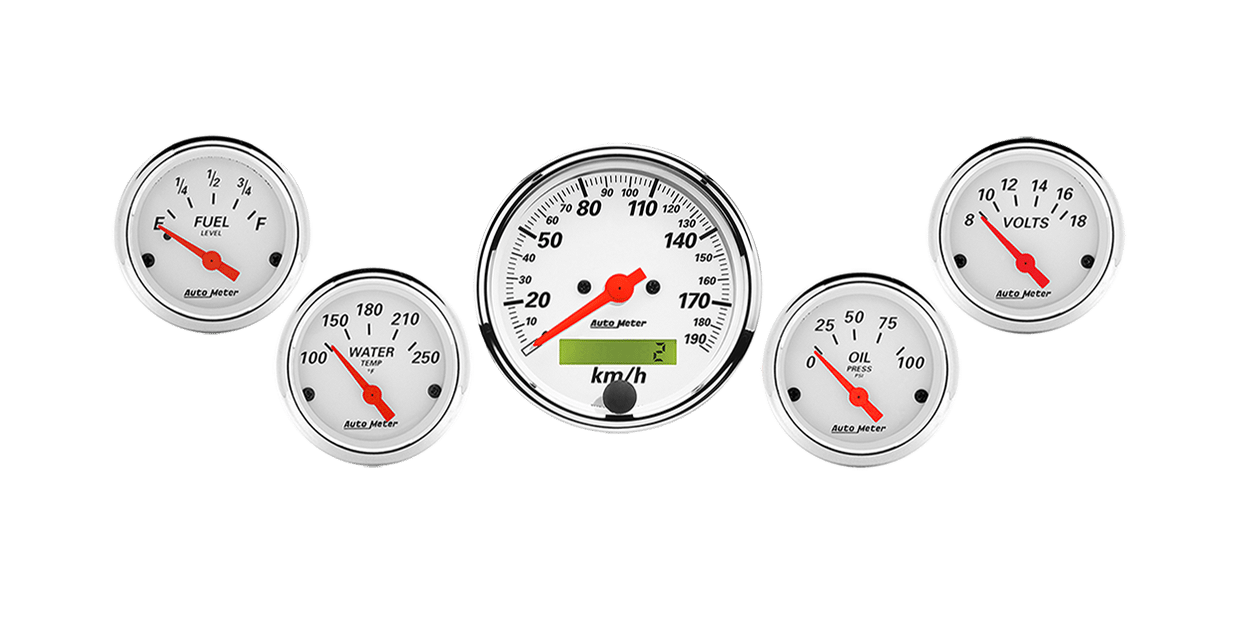

1302 Auto Meter Arctic White 5 Gauge Kit w/ Electric Speedometer (3 1/8″ & 2 1/16″)

• Feature Points
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8″ – 18THD), sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
  • Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
  • Domed Lens

  Ships With

  • Fuel Sender 3262 – Oil Sender 2242 – Water Sender 2258 – 5293 VSS Sensor
  • 1/8″ NPT Male to 1/8″ compression fitting, 1/8″ NPT Female to 1/8″ compression fitting, 1/8″ NPT to 1/4″ NPT bushing, 3/8″ NPT and 1/2″ NPT adapter fittings.
  • Brackets Included
