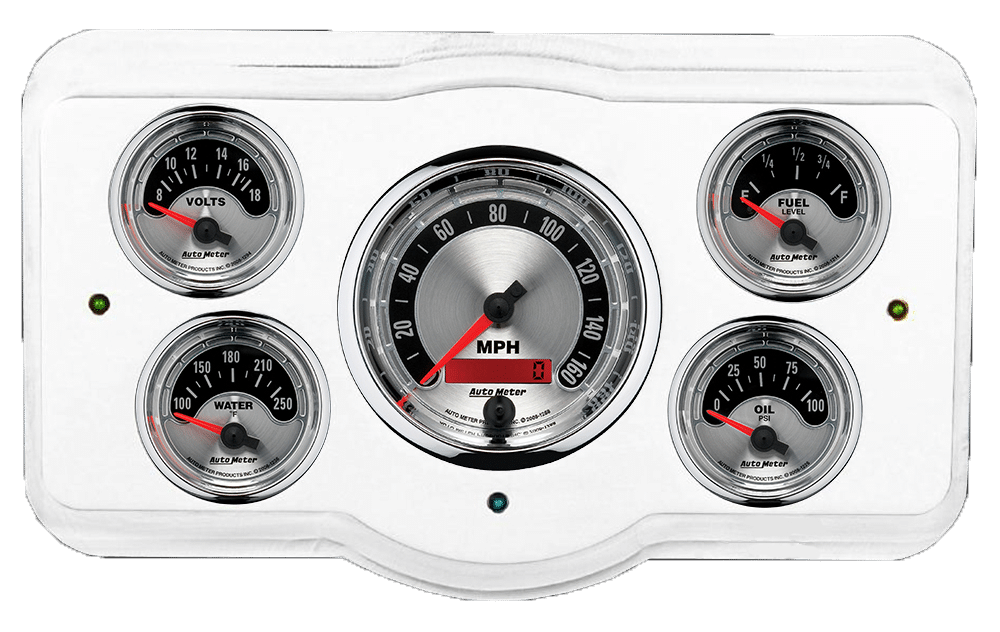

1936 Dodge Car Billet Aluminum Dash Insert w Auto Meter American Muscle Gauges

$809.95$819.95

Includes aluminum gauge panel, Auto Meter American Muscle gauges, & LED lights (turn signal & high beam indicators).

Gauges include:

  • 3 3/8” 160 MPH electric speedometer
  • 2 1/16” 100 psi electric oil pressure
  • 2 1/16” 100-250 degree electric water temperature
  • 2 1/16” 8-18 VDC voltmeter
  • 2 1/16” 240-33 ohm fuel level.
  • Sending units are included for oil pressure, water temperature, fuel level, and speedometer (GM style)
Clear

Description

Gauge Features

  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8″ – 18THD), sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
  • Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers

Ships With

  • Fuel Sender 3262 – Oil Sender 2242 – Water Sender 2258 – 5293 VSS Sensor
  • 3/8″ NPT and 1/2″ NPT adapter fittings
  • Brackets Included

Additional information

Weight 7.75 lbs
Dimensions 17.75 × 9 × 5 in
Gauge Panel Finish

Brushed Finish, Polished Finish
