1937-1938 Chevy Car Aluminum 5 Gauge Panel w/ Classic Instruments Gauges

Name: 1937-1938 Chevy Car Aluminum 5 Gauge Panel w/ Classic Instruments Gauges - Boese Engineering
SKU: 31004-CI
Price: 808.50 USD
Availability: InStock

$808.50

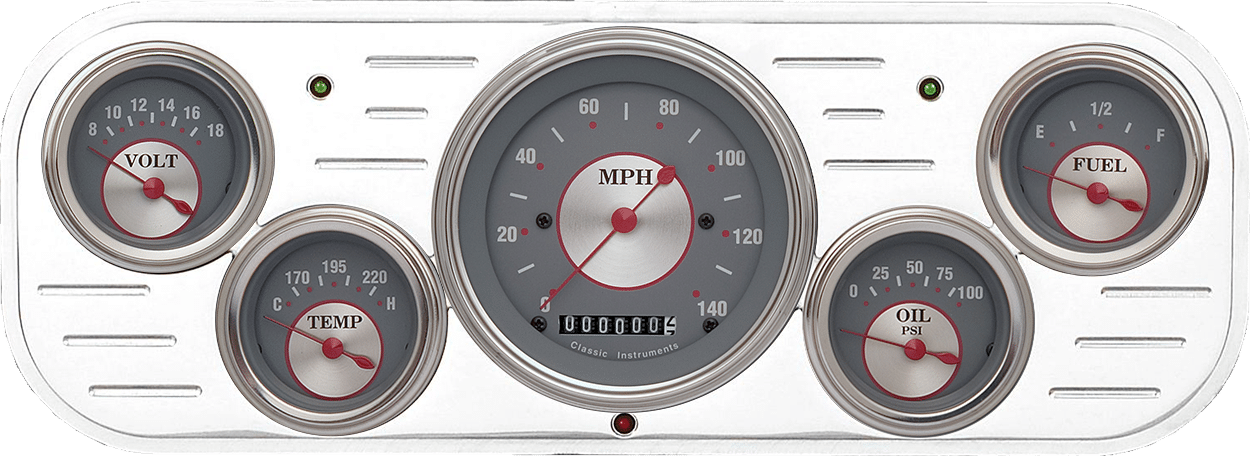

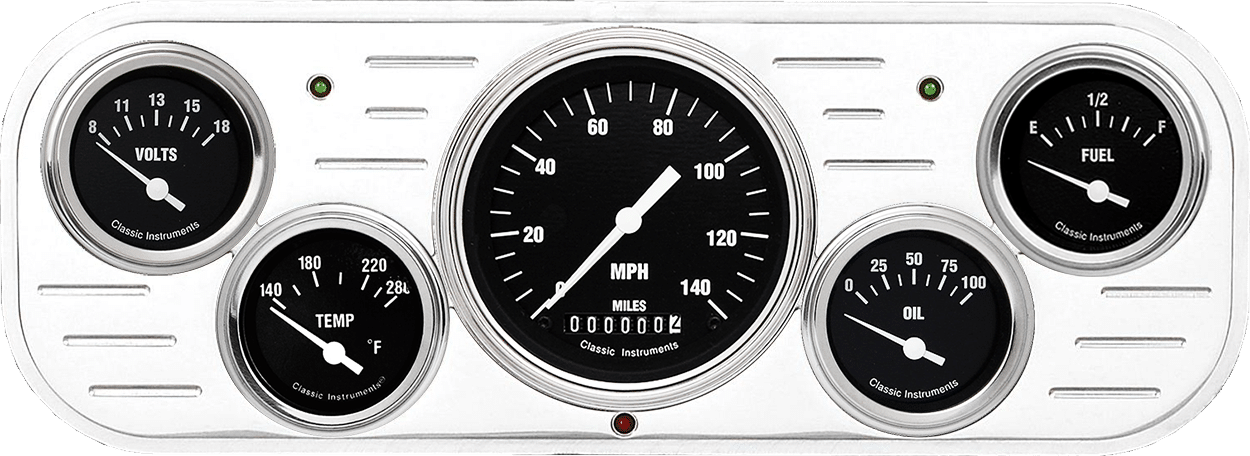

Includes aluminum dash insert, Classic Instruments gauges & LED lights (turn signal & high beam indicators).

Gauge series choices:

Hot Rod
White Hot
Vintage
G/Stock
Silver Series
SG Series
Traditional
Classic White

Gauges include:

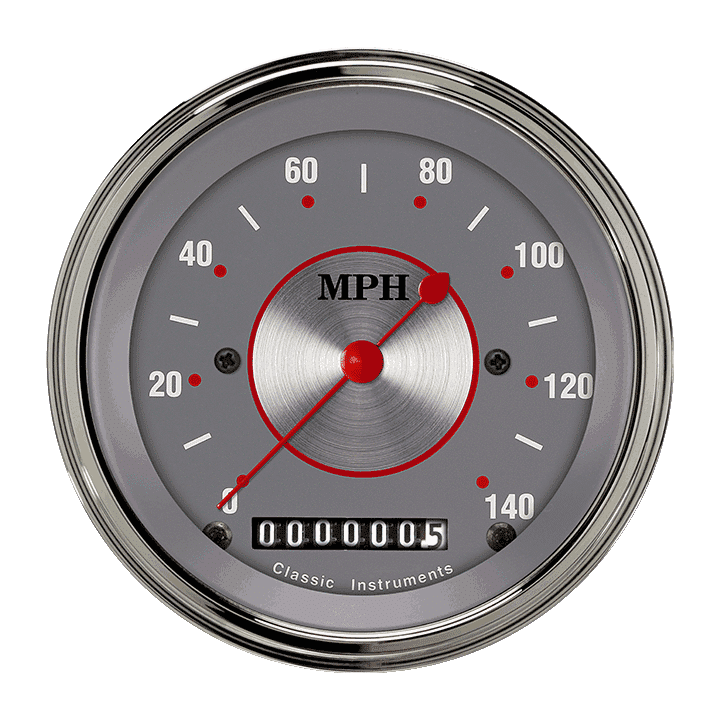

3 3/8” electric speedometer
2 1/8” oil pressure
2 1/8” water temperature
2 1/8” voltmeter
2 1/8” fuel level (choose ohm range)
Includes oil pressure, water temperature, & speedometer senders.

A fuel sender will be included when 240-33 ohms is selected for the fuel gauge.

Gauge Panel Finish

Gauge Series

Fuel Gauge Options

Senders

Clear

Lens Upgrade (scroll down for image)

Curved Lenses (+$25.00)

Optional Information Screen (scroll down for image)

Optional Information Screen (+$40.00)

Upgrade to Holley Easy Level Fuel Level Sender (scroll down for image)

Upgrade to Holley Easy Level Fuel Level Sender (+$75.00)

SKU: 31004-CI Category: 1937-1938 Chevy Car Gauge Panels Tags: 37 38 Chevy Car Gauges, Classic Instruments Gauges

Description

**Hot Rod information screen (optional)**

Classic Instruments is excited to share this all-new hybrid gauge that successfully melds the nostalgic taste of analog gauges with the modern convenience of a digital readout. The new screen offers the end-user the ability to display an odometer, which “rolls” just like a traditional mechanical odometer, a digital speed readout in either miles per hour or kilometers per hour, as well as a trip meter. Additionally, the user can select whether the display uses English or Metric units and each new speedometer is equipped with a step-by-step calibration mode and enhanced diagnostic features.

**Lens options: Curved Glass vs. Flat Glass**

Holley Easy Level Floatless Fuel Sender

Additional information

Weight	7.25 lbs
Dimensions	16.5 × 11.5 × 6 in
Gauge Panel Finish	Brushed Finish, Polished Finish
Gauge Series	Hot Rod, White Hot, Vintage, G/Stock, Silver Series, SG Series, Traditional, Classic White
Fuel Gauge Options	240-33 ohms (includes sender), 0-90 ohms (late GM), 0-30 ohms (early GM), 75-10 ohms (pre-87 Ford)
Senders	GM (non-LS), LS senders, Ford senders, Mopar senders
