1939-1947 Dodge Truck Billet Aluminum 5 Gauge Panel w/ Auto Meter Prestige Series


Includes aluminum dash insert & Auto Meter Prestige series gauges.

Gauge series choices:

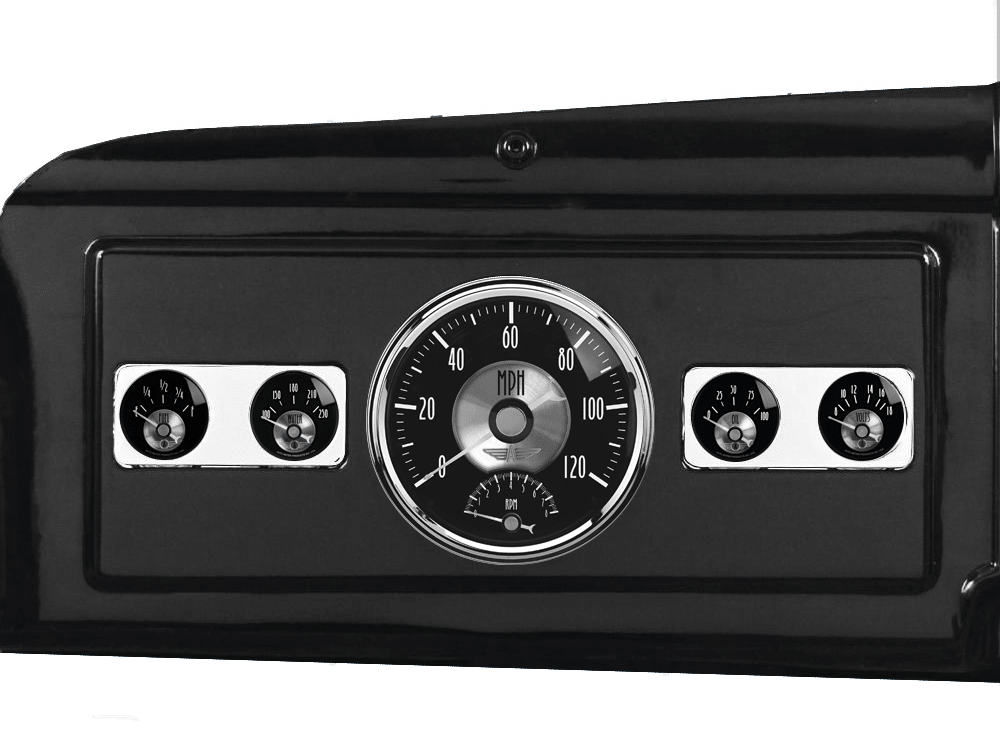

  • Black Diamond

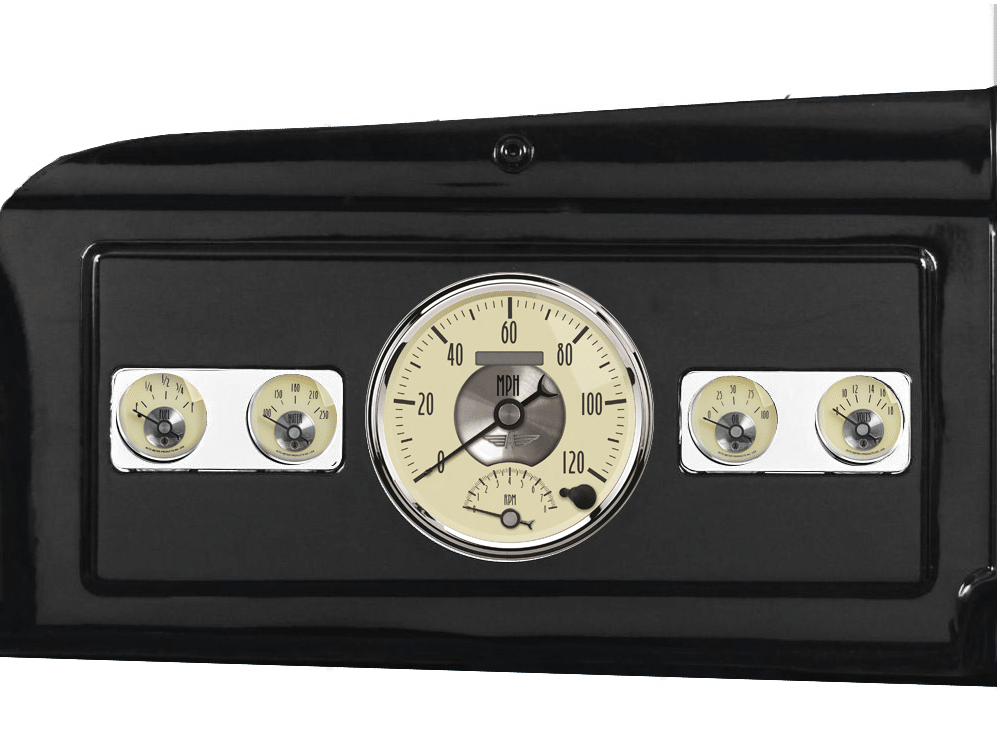

  • Antique Ivory

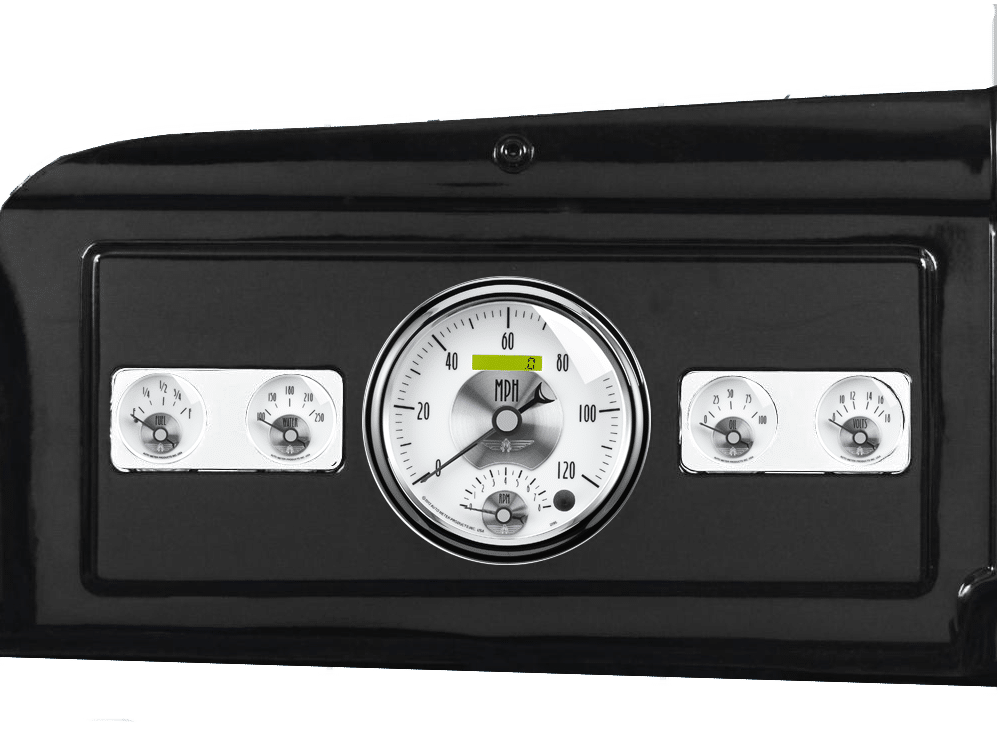

  • Prestige Pearl

Gauges include:

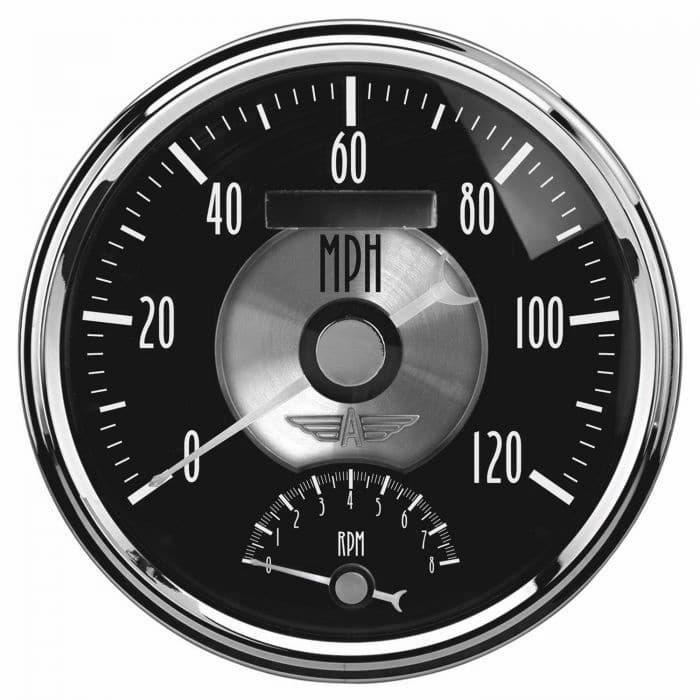

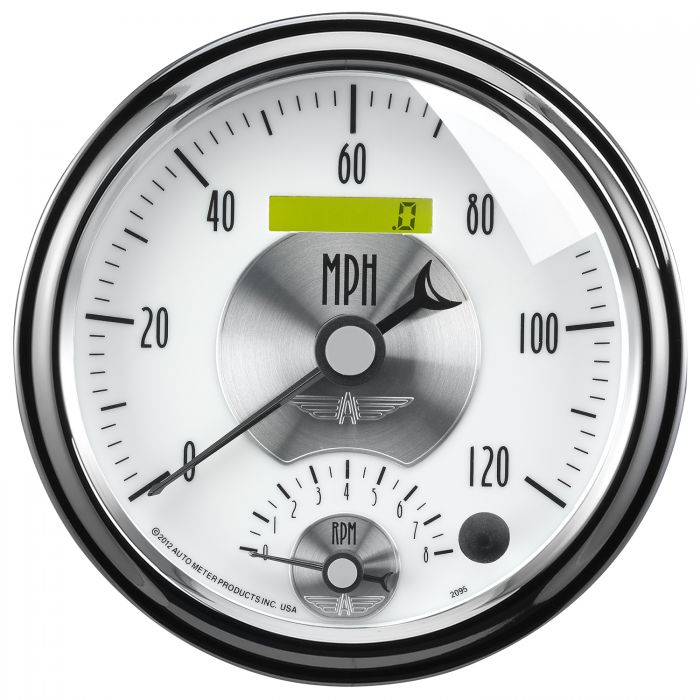

  • 5” 120 MPH / 8,000 RPM speedometer/tachometer combination gauge
  • 2 1/16” 100 PSI electric oil pressure
  • 2 1/16” 100-250 F electric water temperature
  • 2 1/16” 8-18 VDC voltmeter
  • 2 1/16″ 240-33 ohm fuel level
  • Includes oil pressure & water temperature senders


Gauge Features

  • Modern LED through-the-dial lighting provides clear visibility during nighttime use
  • Package includes oil pressure sender, water temperature sender, sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system

GPS Speedometer Feature Points

  • These highly accurate GPS Speedometers include an omnidirectional 10 Hz antenna (10 samples per second) with a 16ft. cable, which is required for operation. The dimensions for the antenna are quite small (1.472 in. x 1.339 in. x 0.508 in.) allowing it to be easily hidden. The GPS antenna utilizes up to 3 GPS satellites simultaneously and samples 10 times per second

Electronic Speedometer Feature Points

  • Speedometer has a simple 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.

Ships With

  • Oil Sender 2242 – Water Sender 2258
  • 1/8″ NPT Male to 1/8″ compression fitting, 1/8″ NPT Female to 1/8″ compression fitting, 1/8″ NPT to 1/4″ NPT bushing, 3/8″ NPT and 1/2″ NPT adapter fittings.
  • Brackets Included

Additional information

Weight 7 lbs
Dimensions 17.75 × 9 × 5 in
Gauge Panel Finish

Brushed Finish, Polished Finish

Gauge Series

Antique Ivory, Black Diamond, Prestige Pearl
