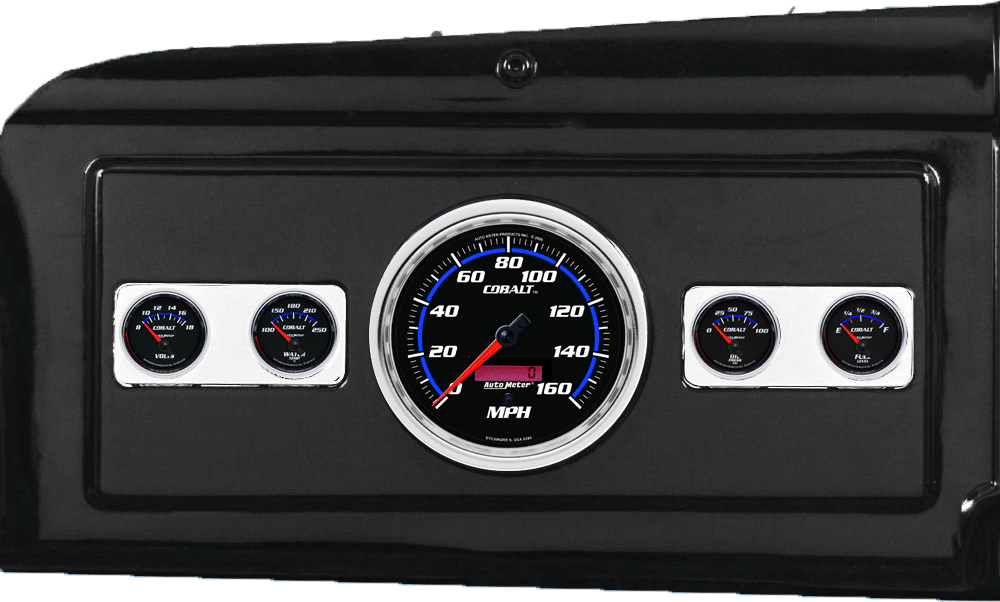

1939-1947 Dodge Truck Billet Aluminum Gauge Panel w/ Auto Meter Cobalt Gauges

$795.00$1,015.00

Includes aluminum dash insert & Auto Meter Cobalt gauges.

Gauges include:

  • 5” speedometer (choose from drop down menu)
  • 2 1/16” 100 PSI oil pressure
  • 2 1/16” 100-250 F water temperature
  • 2 1/16” 8-18 VDC voltmeter
  • 2 1/16” fuel level (choose from drop down list)
  •  Sending units are included for the oil pressure & water temperature gauges.
Clear

Description

Cobalt Feature Points

  • Modern blue LED through-the-dial lighting provides clear visibility during nighttime use

1940-46 Chevy Truck w/ Cobalt Gauges

GPS Feature Points

  • Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
  • These highly accurate GPS Speedometers include an omnidirectional 10 Hz antenna (10 samples per second) with a 16ft. cable, which is required for operation. The dimensions for the antenna are quite small (1.472 in. x 1.339 in. x 0.508 in.) allowing it to be easily hidden. The GPS antenna utilizes up to 3 GPS satellites simultaneously and samples 10 times per second
  • No calibration is needed! Just wire up power, ground, and lighting, connect the antenna and you’re ready to go!
  • The GPS Speedometer’s Rally Nav screen will display pertinent information such as odometer, trip odometer, date/time, GPS coordinates, directional heading, peak speed recall, 0-60 MPH, 60-0 MPH, and inclinometer (pitch and roll).
  • Gauge kit includes GPS antenna, spade connectors for wiring, mounting hardware, and detailed instructions for installation
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Plug and Play, no calibration required!
  • Utilizes up to 3 GPS satellites simultaneously and samples 10 times per second
Ships With
  • 5283



Electronic Speedometer Feature Points

  • Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
  • Features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
  • Compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
  • Simple push button, 2 mile drive calibration. No dip switches!
  • Reprogram at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Gauge kit includes mounting hardware and detailed instructions for installation

Additional information

Weight 7 lbs
Dimensions 17.75 × 9 × 5 in
Gauge Panel Finish

Brushed Finish, Polished Finish

Fuel Options

240-33 ohms (works with ATM3262), 0-90 ohms (late GM), 75-10 (Pre 87 Ford)

Speedometer Options

160 MPH Electric Speedometer, 160 MPH GPS (built in) Speedometer
