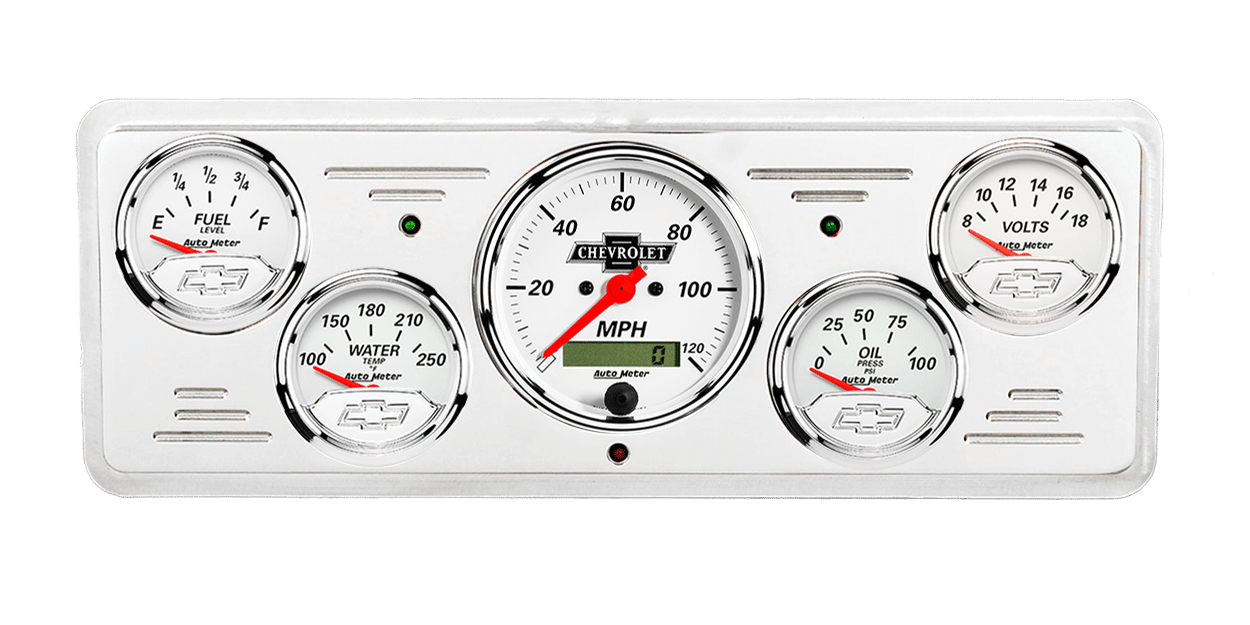

1939 Chevy Car Billet Aluminum Gauge Panel With Auto Meter Chevy Vintage Gauges


Includes aluminum dash insert, Auto Meter Chevy Vintage gauges & turn signal/high beam indicators.

Gauges include:

  • 3 1/8″ 120 MPH electronic speedometer
  • 2 1/16″ 100 PSI electric oil pressure
  • 2 1/16” 100-250 F water temperature
  • 2 1/16” 8-18 VDC voltmeter
  • 2 1/16” 240-33 ohm fuel level.
  • Sending units are included for the speedometer, oil pressure, water temperature, & fuel gauges.


Gauge Features

  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8″ – 18THD), sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
  • Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers

Ships With

  • Fuel Sender 3262 – Oil Sender 2242 – Water Sender 2258 – 5293 VSS Sensor
  • Brackets Included

Additional information

Weight 7.5 lbs
Dimensions 17.75 × 9 × 5.5 in
Gauge Panel Finish

Brushed Finish, Polished Finish
