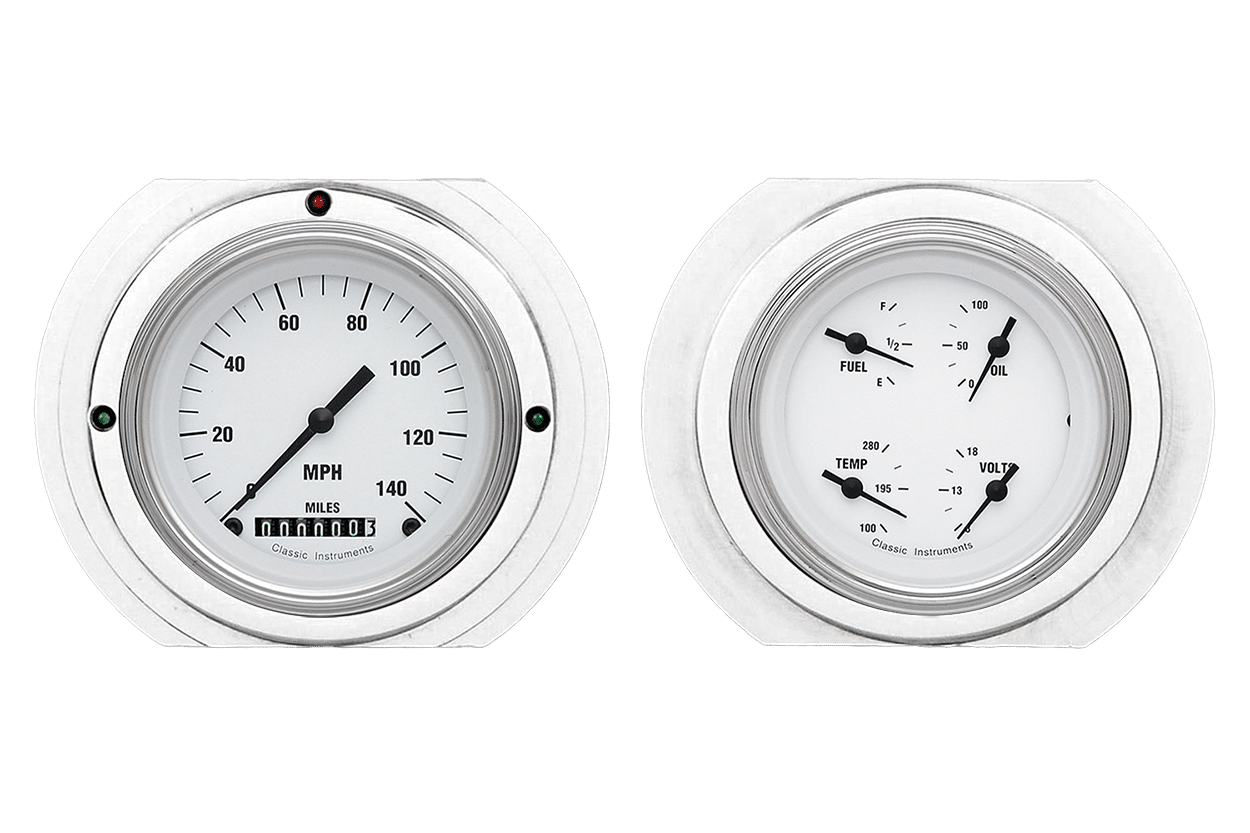

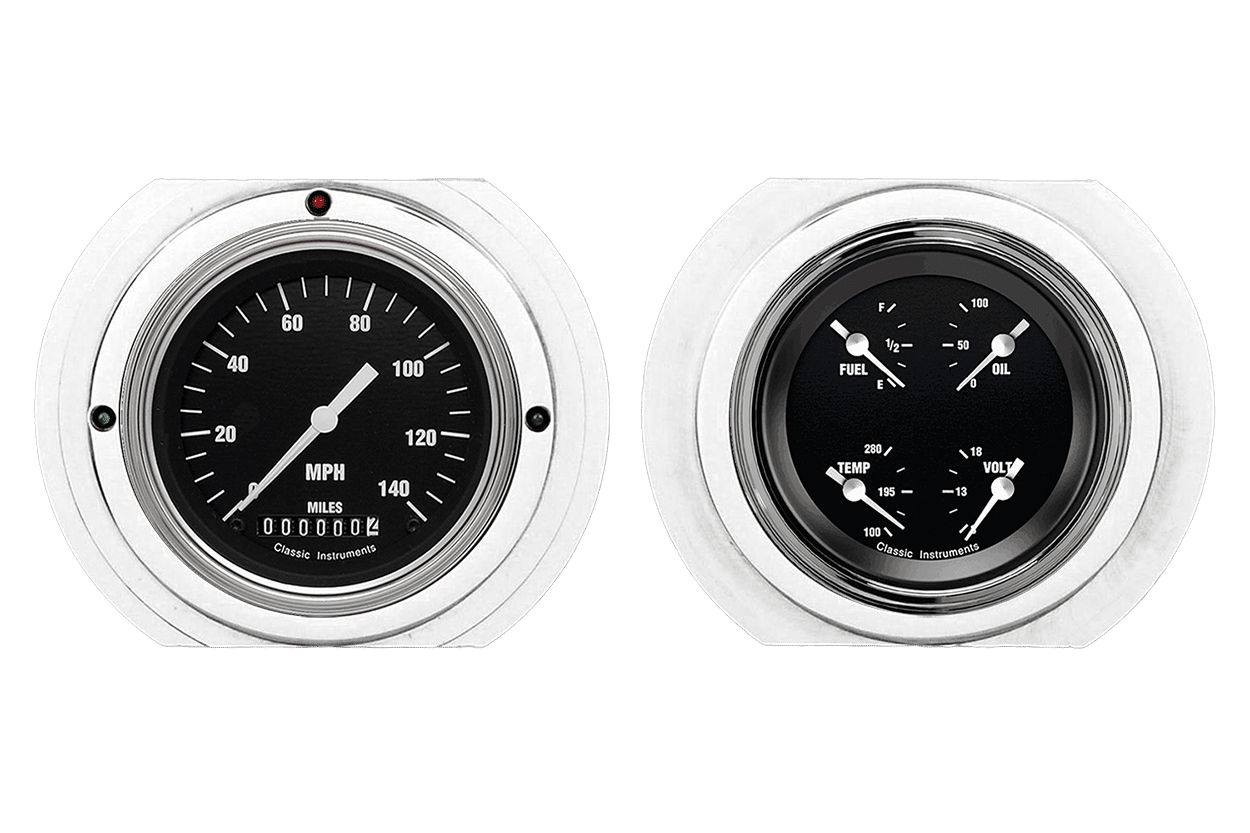

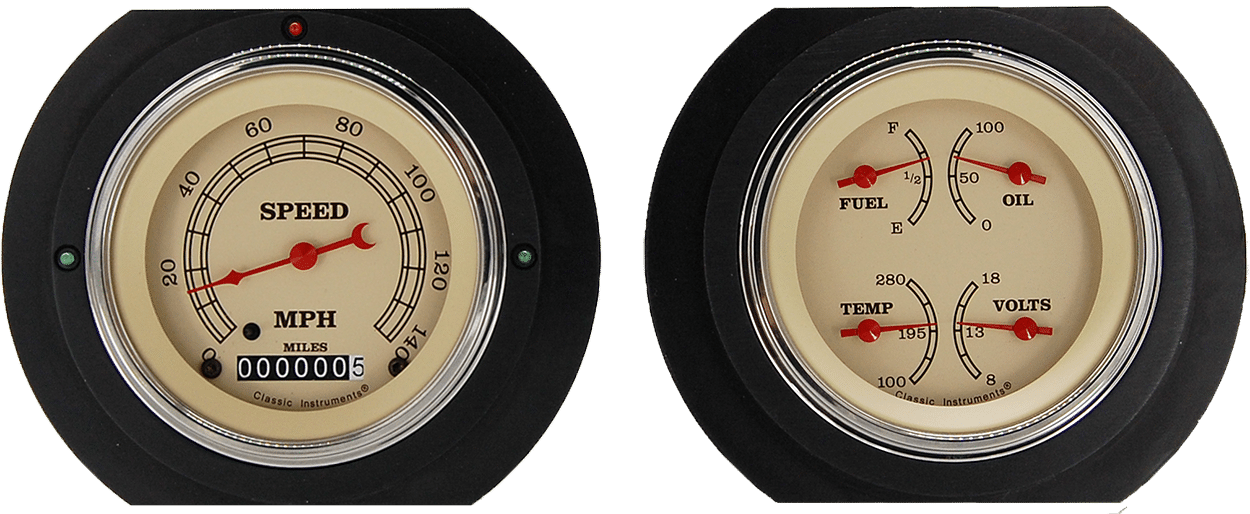

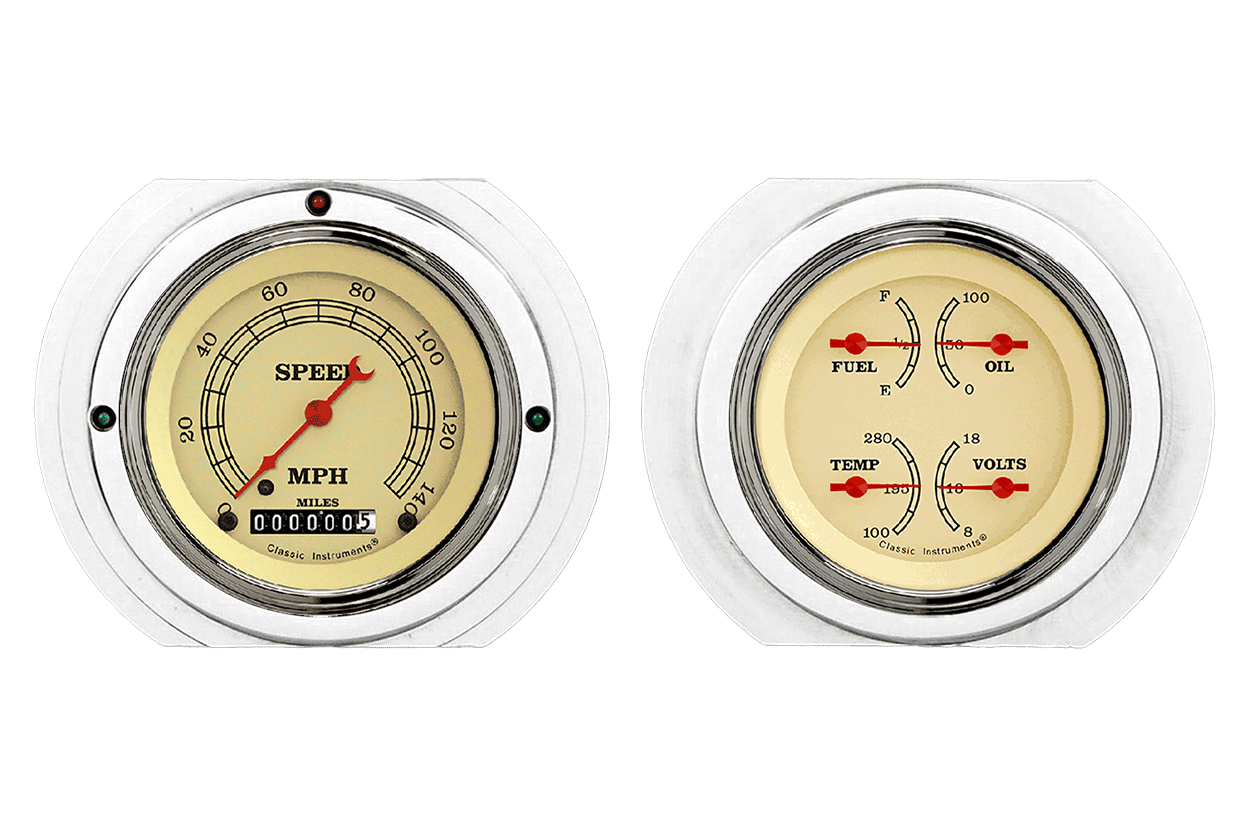

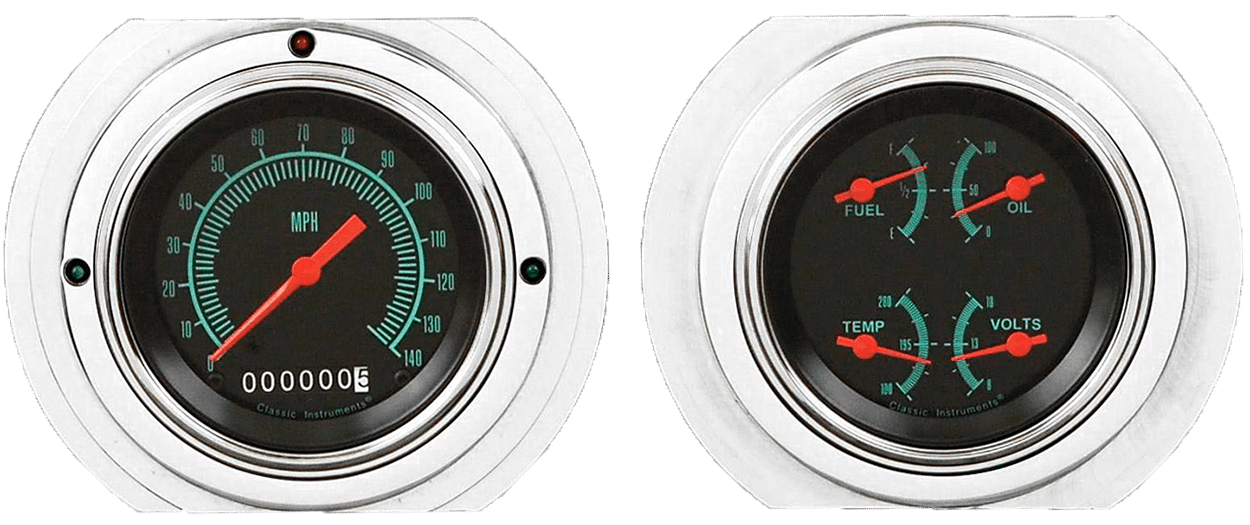

1951-1952 Ford Truck Aluminum Gauge Panels w/ Classic Instruments Gauges


Includes aluminum dash insert, Classic Instruments gauges & LED lights (turn signal & high beam indicators).

Gauge series chooses:

  • Hot Rod
  • White Hot
  • Vintage
  • G/Stock
  • SG Series
  • Traditional
  • Classic White

Gauges include:

  • 3 3/8″ electric speedometer
  • 3 3/8″ Quad gauge (oil pressure, water temperature, fuel level, & voltmeter)
  • Includes oil pressure, water temperature, & speedometer senders

A fuel sender will be included when 240-33 ohms is selected for the fuel gauge.


Hot Rod information screen (optional)

Classic Instruments is excited to share this all-new hybrid gauge that successfully melds the nostalgic taste of analog gauges with the modern convenience of a digital readout. The new screen offers the end-user the ability to display an odometer, which “rolls” just like a traditional mechanical odometer, a digital speed readout in either miles per hour or kilometers per hour, as well as a trip meter. Additionally, the user can select whether the display uses English or Metric units and each new speedometer is equipped with a step-by-step calibration mode and enhanced diagnostic features.

Lens options: Curved Glass vs. Flat Glass

Additional information

Weight 7.5 lbs
Dimensions 16.5 × 11.5 × 5.5 in
Gauge Panel Finish

Brushed Finish, Polished Finish, Brushed Black

Gauge Series

Hot Rod, White Hot, Vintage, G/Stock, SG Series, Traditional, Classic White

Fuel Gauge Options

240-33 ohms (includes sender), 0-90 ohms (late GM), 0-30 ohms (early GM), 75-10 ohms (pre-87 Ford)


GM (non-LS), LS senders, Ford senders, Mopar senders

Speedometer Options

MPH (miles per hour), KPH (kilometers per hour)
