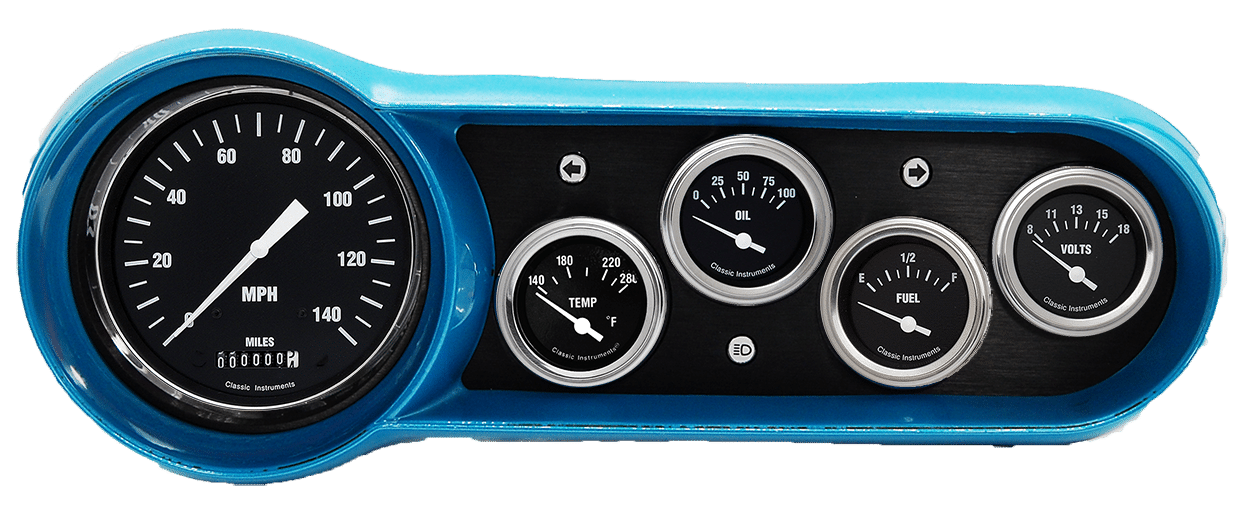

1953-1954 Chevy Car Aluminum Gauge Panels w/ Classic Instruments Hot Rod Gauges

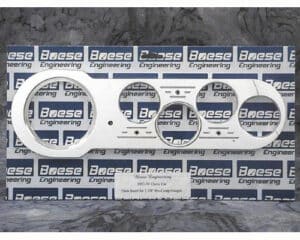

Includes Boese Engineering aluminum gauge panels (brushed & black anodized), Classic Instruments Hot Rod gauges, & LED turn signal & high beam indicators.

Gauges included in this package:

  • 4 5/8″ Electric speedometer (choose MPH or KPH)
  • 2 1/8″ 0-100 PSI oil pressure
  • 2 1/8″ 140-280 F water temperature
  • 2 1/8″ 8-18 VDC voltmeter
  • 2 1/8″ Fuel level (choose ohm range)

A Classic Instruments SN35 universal fuel sender will be included when 240-33 ohms is selected for the fuel gauge.
Mounts into stock bezel. Bezel NOT included.


Lens options: Curved Glass vs. Flat Glass
Hot Rod information screen (optional)

Classic Instruments is excited to share this all-new hybrid gauge that successfully melds the nostalgic taste of analog gauges with the modern convenience of a digital readout. The new screen offers the end-user the ability to display an odometer, which “rolls” just like a traditional mechanical odometer, a digital speed readout in either miles per hour or kilometers per hour, as well as a trip meter. Additionally, the user can select whether the display uses English or Metric units and each new speedometer is equipped with a step-by-step calibration mode and enhanced diagnostic features.

Additional information

Weight 7.5 lbs
Dimensions 17 × 11.5 × 5.5 in
Speedometer Options

Miles Per Hour (140), Kilometers Per Hour (200)


GM (non LS), LS, Mopar, Ford

Fuel Gauge Options

0-90 ohms (late GM), 0-30 ohms (early GM), 240-33 ohms (works w/ SN35, 75-10 (early Ford)
