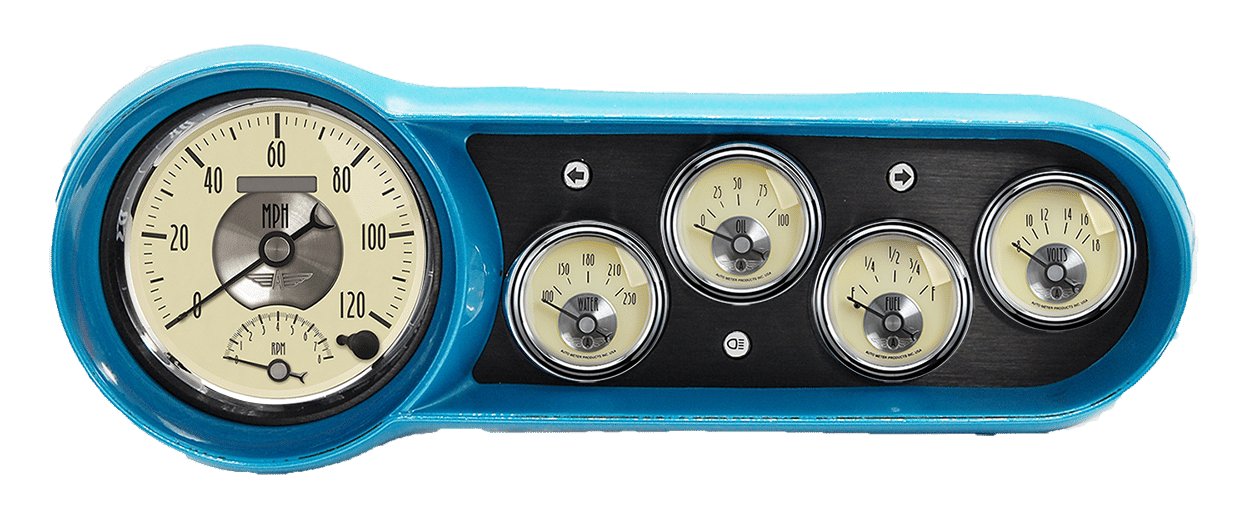

1953-1954 Chevy Car Gauge Panels w/ Auto Meter Antique Ivory Gauges


Includes aluminum gauge panels (brushed & black anodized), Auto Meter Antique Ivory gauges, and LED turn signal & high beam indicators.

Gauges include:

  • 5” 120 MPH / 8,000 RPM speedometer/tachometer combination gauge
  • 2 1/16” 100 PSI electric oil pressure
  • 2 1/16” 100-250 F electric water temperature
  • 2 1/16” 8-18 VDC voltmeter
  • 2 1/16″ fuel level (choose from drop down menu)
  • Includes oil pressure & water temperature senders


Gauge Features

  • Modern LED through-the-dial lighting provides clear visibility during nighttime use
  • Package includes oil pressure sender, water temperature sender, sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system

Electronic Speedometer Feature Points

  • Speedometer has a simple 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.

Ships With

  • Oil Sender 2242 – Water Sender 2258
  • 1/8″ NPT Male to 1/8″ compression fitting, 1/8″ NPT Female to 1/8″ compression fitting, 1/8″ NPT to 1/4″ NPT bushing, 3/8″ NPT and 1/2″ NPT adapter fittings.
  • Brackets Included

Additional information

Weight 7 lbs
Dimensions 17.75 × 9 × 5 in
Fuel Gauge Options

240-33 ohms (works w/ ATM3262), 0-90 ohms (late GM)
