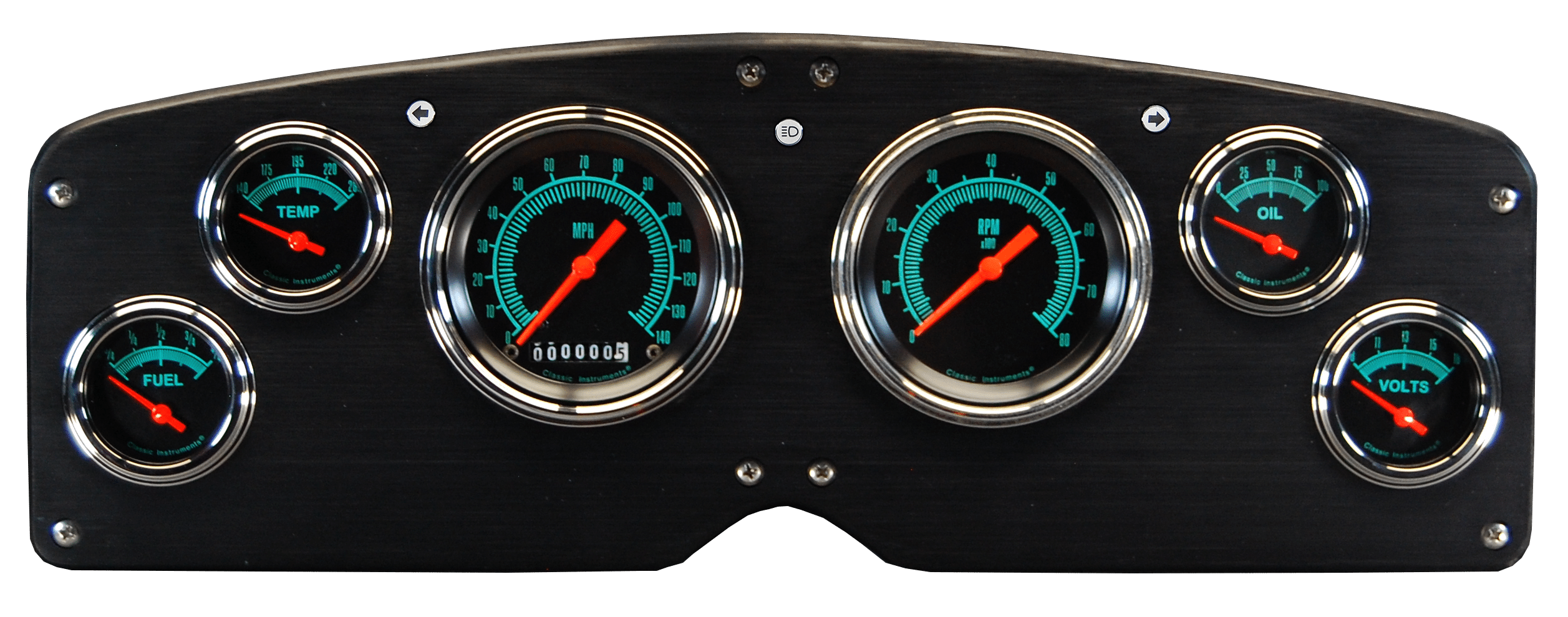

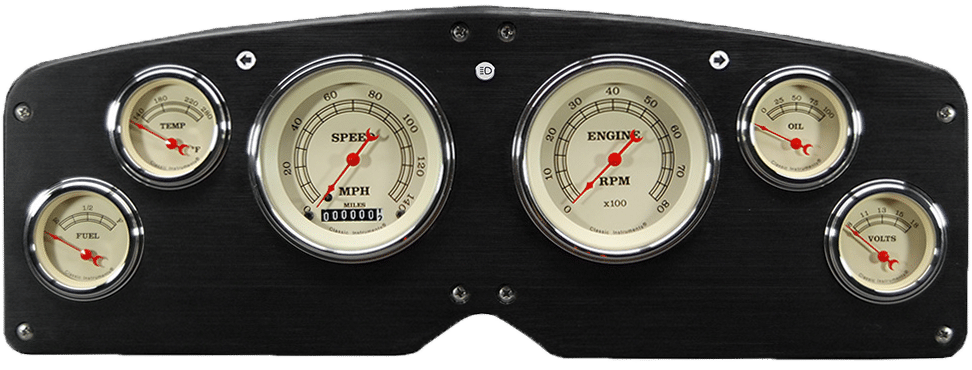

1954-1955 GMC Truck Aluminum Gauge Panel w/ Classic Instruments Gauges


1954-1955 GMC Truck Aluminum Gauge Panel w/ Classic Instruments Gauges - Image 2


1954-1955 GMC Truck Aluminum Gauge Panel w/ Classic Instruments Gauges - Image 3


1954-1955 GMC Truck Aluminum Gauge Panel w/ Classic Instruments Gauges - Image 4


1954-1955 GMC Truck Aluminum Gauge Panel w/ Classic Instruments Gauges - Image 5


1954-1955 GMC Truck Aluminum Gauge Panel w/ Classic Instruments Gauges - Image 6


1954-1955 GMC Truck Aluminum Gauge Panel w/ Classic Instruments Gauges - Image 7



1954-1955 GMC Truck Aluminum Gauge Panel w/ Classic Instruments Gauges

Name: 1954-1955 GMC Truck Aluminum Gauge Panel w/ Classic Instruments Gauges - Boese Engineering
SKU: 12754-CI
Price: 989.95 USD
Availability: InStock

$989.95

Includes aluminum gauge panel, Classic Instruments gauges & LED lights (turn signal & high beam indicators).

Gauge series choices:

Hot Rod
White Hot
Vintage
G/Stock
Silver Series

Gauges include:

3 3/8” electric speedometer
3 3/8” tachometer
2 1/8” oil pressure
2 1/8” water temperature
2 1/8” voltmeter
2 1/8” fuel level (choose ohm range)
Includes oil pressure, water temperature, & speedometer senders.

A fuel sender will be included when 240-33 ohms is selected for the fuel gauge.

Gauge Panel Finish

Gauge Series

Fuel Gauge Options

Senders

Clear

Lens Upgrade (scroll down for image) *

Flat Lenses

Curved Lenses (+$25.00)

Optional Information Screen (Scroll down for image) *

No Upgrade

Optional Information Screen (+$40.00)

SKU: 12754-CI Category: 1954-1955 GMC Truck Gauge Panels Tags: 54 55 GMC Truck Gauges, Classic Instruments Gauges

Description

**Hot Rod information screen (optional)**

Classic Instruments is excited to share this all-new hybrid gauge that successfully melds the nostalgic taste of analog gauges with the modern convenience of a digital readout. The new screen offers the end-user the ability to display an odometer, which “rolls” just like a traditional mechanical odometer, a digital speed readout in either miles per hour or kilometers per hour, as well as a trip meter. Additionally, the user can select whether the display uses English or Metric units and each new speedometer is equipped with a step-by-step calibration mode and enhanced diagnostic features.

**Lens options: Curved Glass vs. Flat Glass**

Additional information

Weight	8.5 lbs
Dimensions	21 × 11.5 × 6 in
Gauge Panel Finish	Brushed Finish, Polished Finish, Brushed Black
Gauge Series	Hot Rod, White Hot, Vintage, G/Stock, Silver Series
Fuel Gauge Options	0-30 ohms (works w/ stock sender), 240-33 ohms (includes sender), 0-90 ohms (late GM), 75-10 ohms (early Ford)
Senders	GM (non-LS), LS senders, Ford senders, Mopar senders
