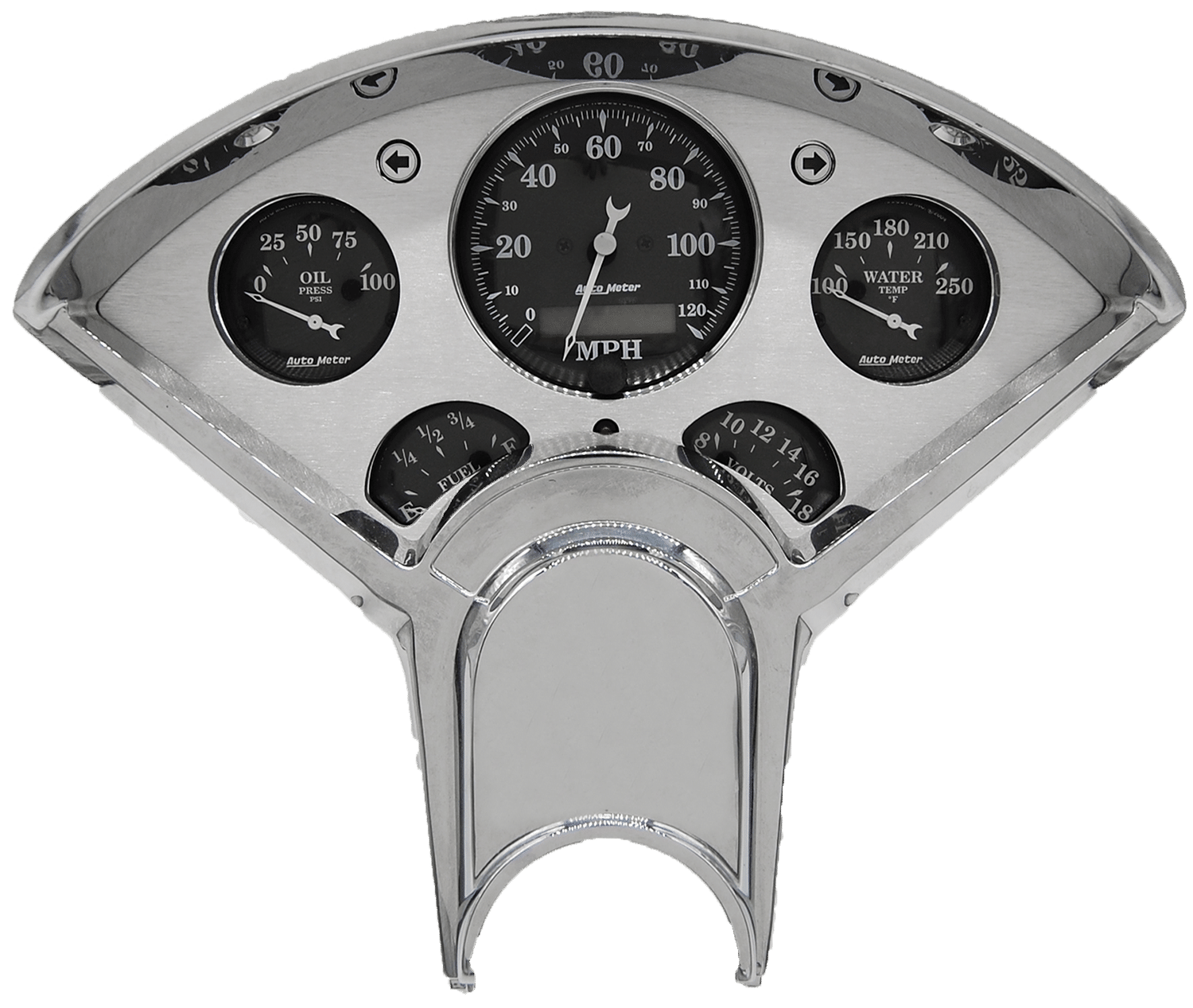

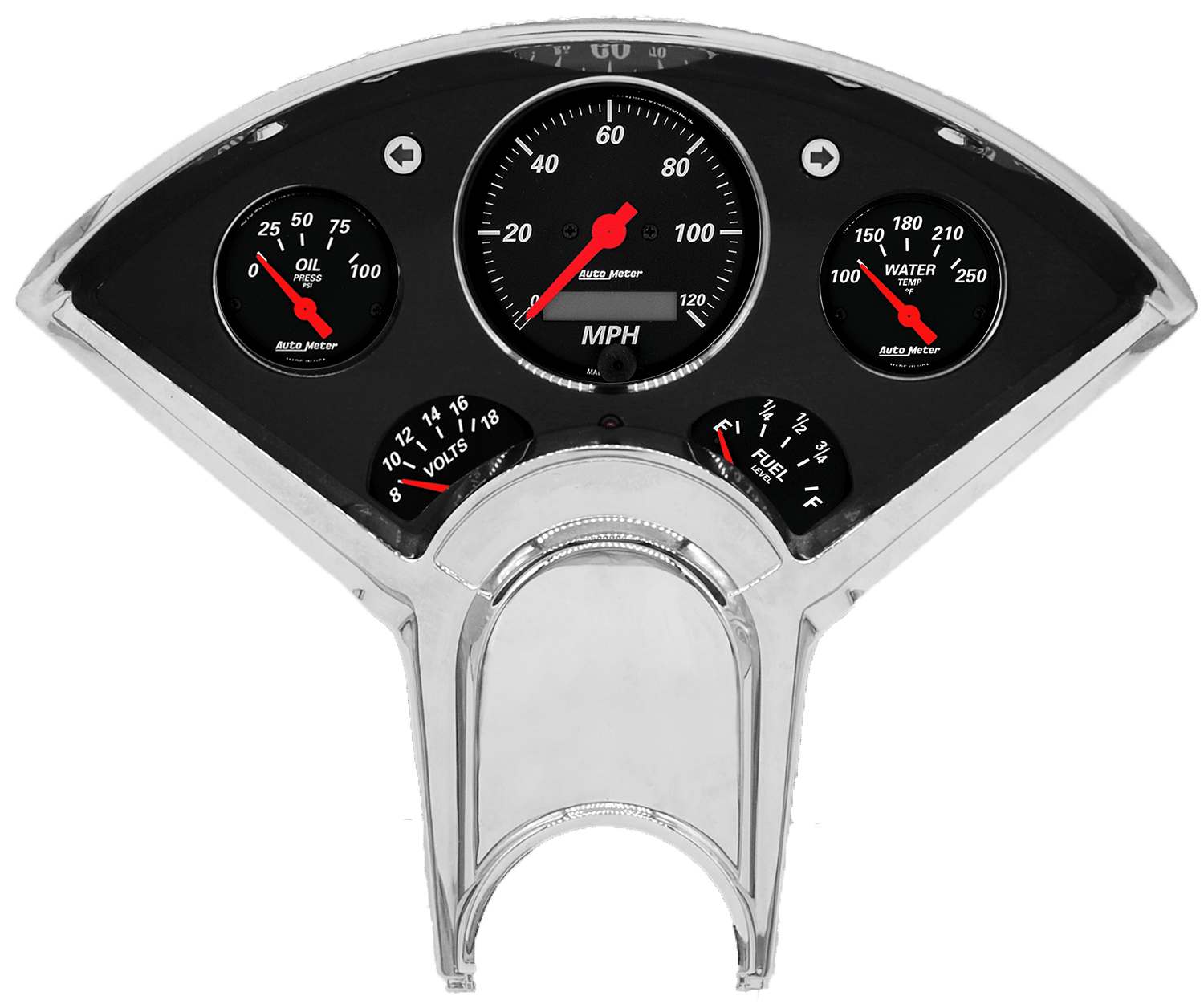

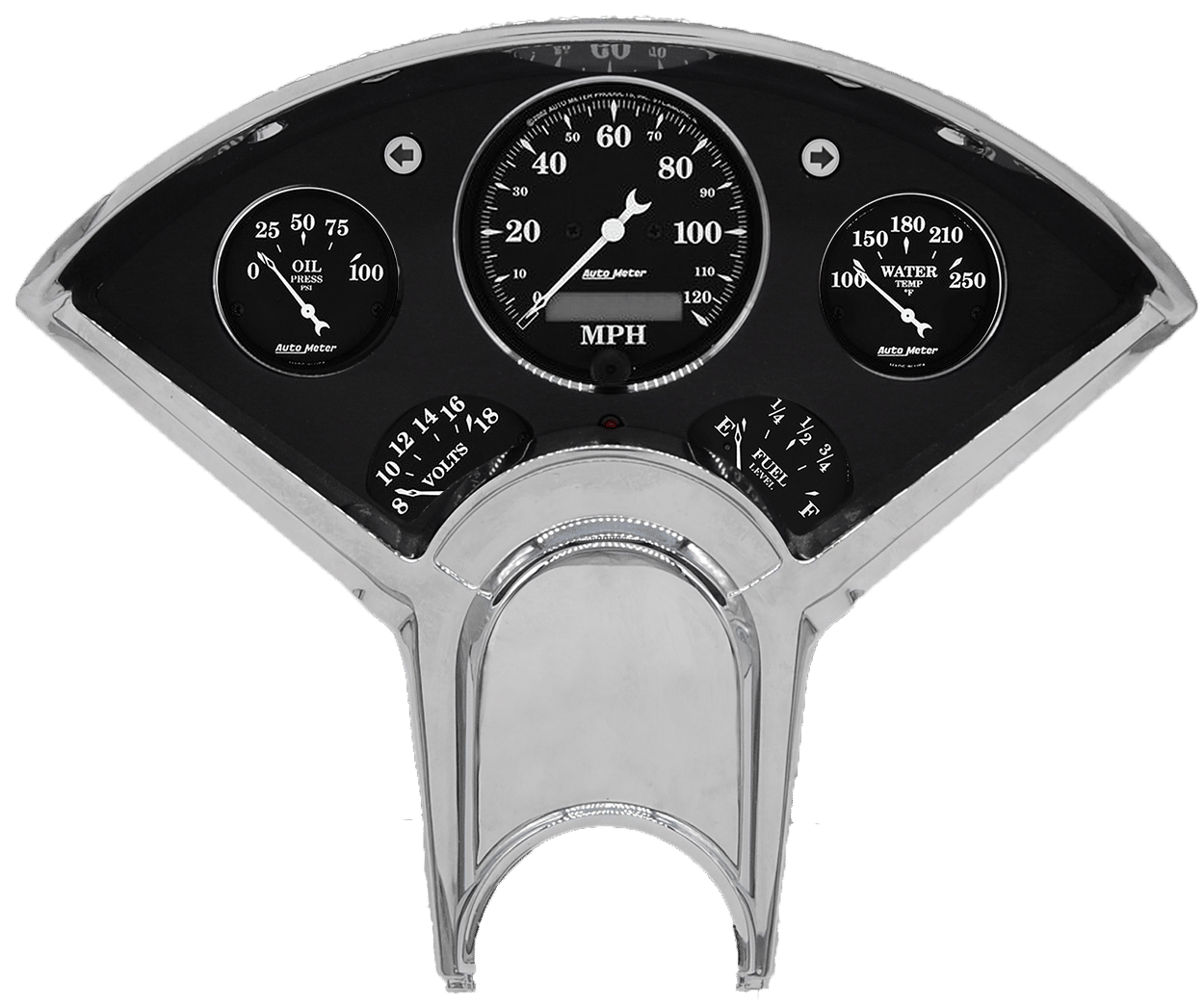

1955-1956 Chevy Car Billet Aluminum Gauge Panel w/ Auto Meter Street Rod series gauges
Price range: $593.95 through $659.95
Includes aluminum gauge panel, AutoMeter Street Rod series gauges & turn signal/high beam indicators.
Gauge series choices:
- Old Tyme Black
- Old Tyme White
- Antique Beige
- Designer Black
- Arctic White
Gauges include:
- 3 1/8″ speedometer (choice of mechanical, electric, or metric)
- 2 1/16″ 100 PSI electric oil pressure
- 2 1/16” 100-250 F electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” fuel level (choose ohm range from drop down list)
- Sending units are included for the oil pressure & water temperature
Left & Right 8 mm green LED lit turn signal indicators
Red 5/32″ LED high beam indicator
Outside chrome bezel sold separately.
WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Description
Feature Points- Traditional incandescent lighting illuminates around the perimeter of the dial
- Package includes oil pressure sender, water temperature sender, bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- Oil Sender 2242 – Water Sender 2258
- 3/8″ NPT and 1/2″ NPT adapter fittings
- Brackets Included
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 16 × 9 × 7 in |
| Gauge Panel Finish | Brushed Finish, Brushed & Black Anodized Finish |
| Speedometer Options | 120 MPH Mechanical, 120 MPH Electronic, 190 KPH Electronic |
| Gauge Series | Designer Black, Old Tyme White, Old Tyme Black, Arctic White, Antique Beige |
| Fuel Gauge ohm range | 0-30 ohms (works w/ stock sender), 0-90 ohms (late model GM), 73-10 ohms (Pre-89 Ford), 240-33 ohms (works w/ ATM3262) |
