1955-1959 Chevy Truck Classic Instruments Tach-Force Packages


Classic Instruments lends its style and quality to the 1955-1959 Chevrolet Task-Force Pickups, Suburbans and Panel Trucks.  Tach-Force packages are complete retrofit units, incorporating a tachometer and LED lighting, while retaining an original look.

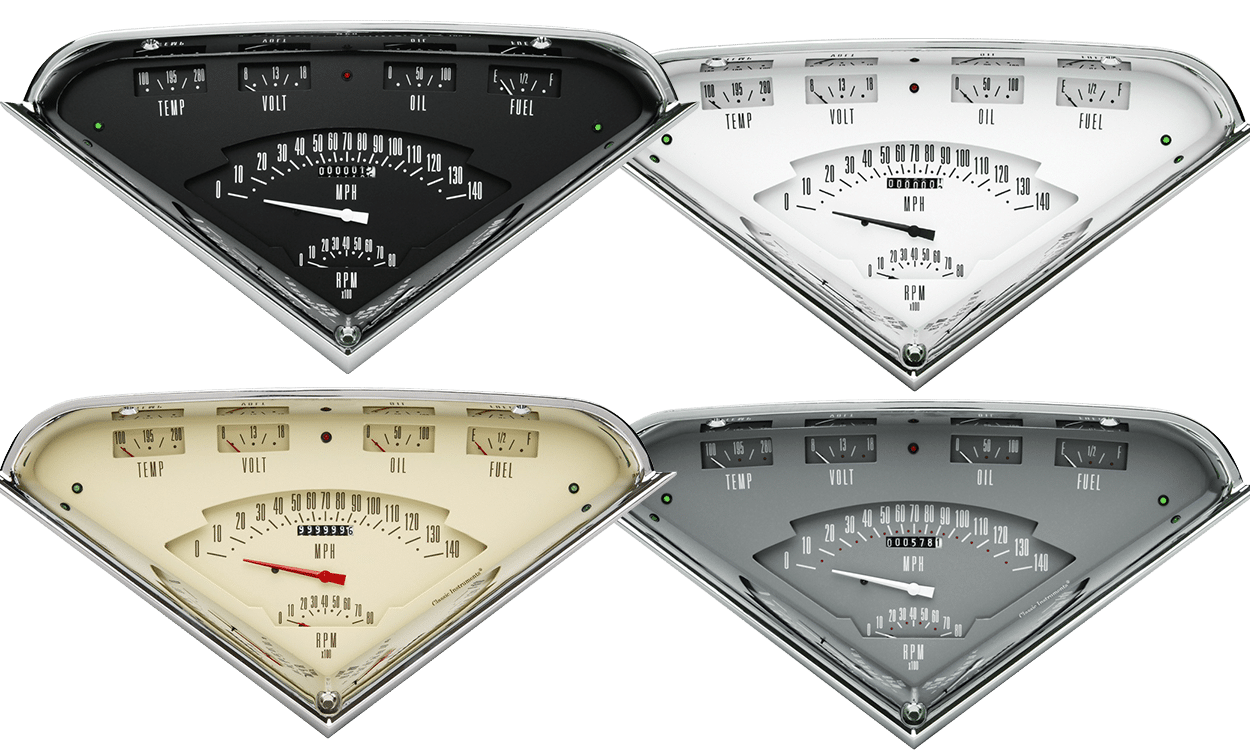

1955-1959 Chevy Truck Tach-Force  packages are available in the 4 styles below :

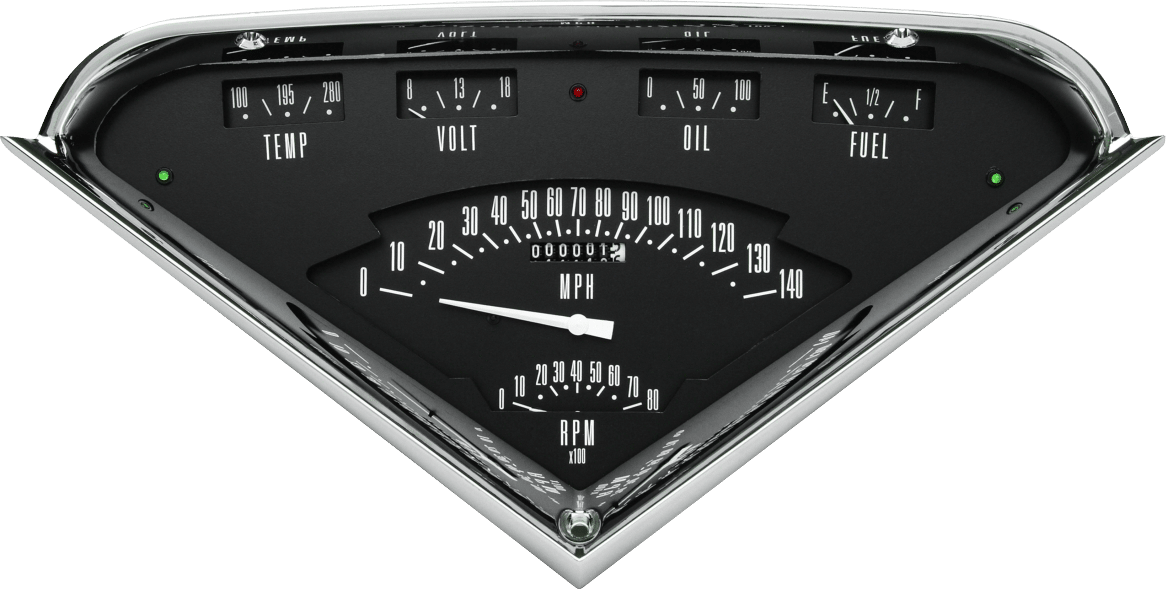

  • Black
  • White

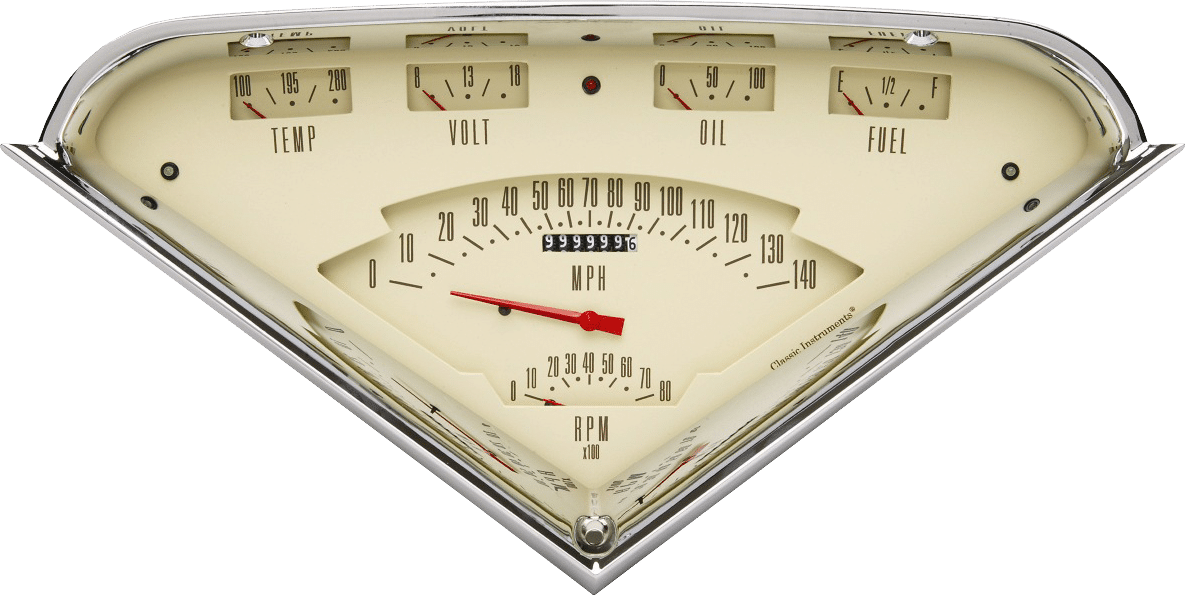

  • Tan
  • Gray

 Fully assembled into reproduction chrome bezel, each package includes:

  • Speedometer (140 MPH or 200 KPH)
  • 8,000 RPM Tachometer
  • 0-30 ohm Fuel level (works w/ stock sender)
  •  0-100 PSI Oil Pressure
  • 100-220 F Water Temperature
  • 8-18 VDC Voltmeter

The 1955-59 Chevy Truck Tach Force Package features:

  • Wiring harness (automotive grade TXL wire / machine-crimped terminals / tech-flex sleeving / Molex main connectors.
  • Dual layer design
  • LED turn signals & high beam indicator
  • Necessary* sending units & installation hardware
  • Built-in ECM filter signal switch
  • ZST™ technology works directly with ECM or VSS signals (no additional control box is needed)

*Mounts into stock or aftermarket bezel. Bezel not included

**Fuel level sending unit not included.

WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.


Additional information

Weight 8 lbs
Dimensions 23.5 × 14.75 × 6.5 in
Style Options

Black, White, Tan, Gray

Speedometer Options

140 MPH (imperial), 200 KPH (metric)

Sender Options

GM Senders, LS Senders, Ford Senders, Mopar Senders

Fuel Gauge Options

0-30 (works w/ stock sender), 0-90 ohms (late GM), 75-10 ohm (most pre 87 Ford), 240-33 ohms
