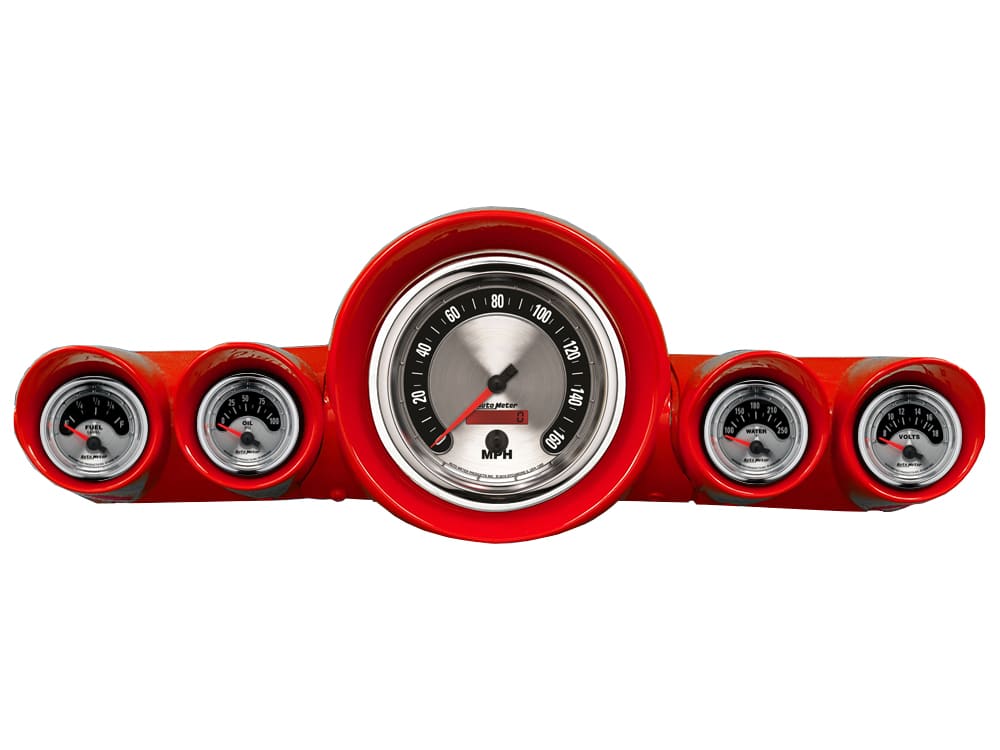

1959-1960 Chevy Impala Aluminum Adapter Ring w/ Auto Meter American Muscle Gauges


Includes aluminum gauge panels & Auto Meter American Muscle gauges.

Gauges include:

  • 5” 160 MPH electric speedometer
  • 2 1/16” 100 psi electric oil pressure
  • 2 1/16” 100-250 degree electric water temperature
  • 2 1/16” 8-18 VDC voltmeter
  • 2 1/16” fuel level (choose ohms from drop down menu)
  • Sending units are included for oil pressure & water temperature gauges


Gauge Features

  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • Package includes oil pressure sender, water temperature sender, sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
  • Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers

Ships With

  • Oil Sender 2242 – Water Sender 2258
  • 3/8″ NPT and 1/2″ NPT adapter fittings
  • Brackets Included

Additional information

Weight 7 lbs
Dimensions 17.75 × 9 × 5 in
Fuel Level Options

0-30 ohms (works w/ stock sender), 240-33 ohms (works w/ ATM3262), 0-90 ohms (late model GM), 75-10 ohms (early Ford)


There are no reviews yet.

Be the first to review “1959-1960 Chevy Impala Aluminum Adapter Ring w/ Auto Meter American Muscle Gauges”

Your email address will not be published. Required fields are marked *

You may also like…


    Add to cart
  • Auto Meter Electric Programmable Speedometer Sender GPS 5289

    Add to cart
  • 1959-1960 Chevy Impala Aluminum Adapter Ring w/ Auto Meter American Muscle Gauges

    Select options

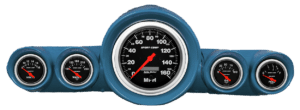

  • 1959-1960 Chevy Impala Aluminum Adapter Ring w/ Sport-Comp Gauges
