1960-1961 GMC Truck Aluminum Dash Insert w/ Auto Meter American Muscle Gauges

$1,119.95$1,169.95

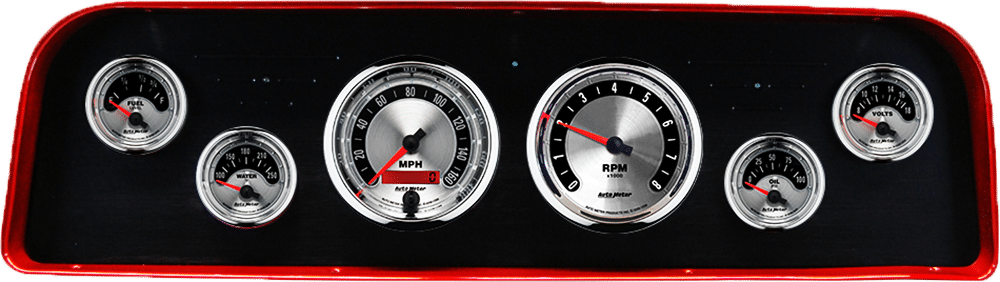

Includes aluminum gauge panel, Auto Meter American Muscle gauges, & LED lights (turn signal & high beam indicators).

Gauges include:

  • 3 3/8” electric speedometer (choose from drop down list)
  • 3 3/8″ 8,000 RPM tachometer
  • 2 1/16” 100 psi electric oil pressure
  • 2 1/16” 100-250 degree electric water temperature
  • 2 1/16” 8-18 VDC voltmeter
  • 2 1/16” fuel level (choose ohm range from drop down list)
  • Sending units are included for oil pressure & water temperature

Mounts into stock bezel (not included).  Must be cut to fit.

Installation Instructions

Clear

Description

Gauge Features

  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • Package includes oil pressure sender, water temperature sender, sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
  • Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
  • Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers

Ships With

  • Oil Sender 2242 – Water Sender 2258
  • 3/8″ NPT and 1/2″ NPT adapter fittings
  • Brackets Included

Additional information

Weight 7.75 lbs
Dimensions 22.5 × 9 × 5.5 in
Gauge Panel Finish

Brushed Finish, Polished Finish, Brushed Black

Fuel Options

0-30 ohms (works with stock sender), 0-90 ohms (late GM), 240-33 ohms (works w/ ATM3262), 75-10 ohms (early Ford)

Speedometer Options

160 MPH Electric Speedometer, 260 KPH Electric Speedometer
