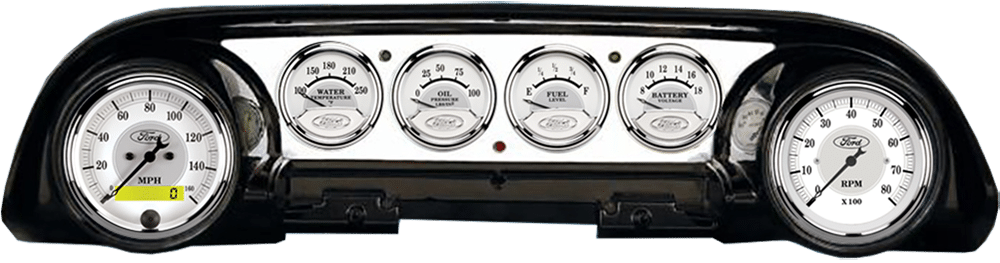

1963-1964 Ford Galaxie Aluminum Gauge Panels w/ Auto Meter Ford Masterpiece Silver Gauges
Price range: $923.95 through $934.95
Includes aluminum gauge panel, Auto Meter Ford Masterpiece Silver gauges, & turn signal/high beam indicators.
Gauges include:
- 3 1/8″ 160 MPH electronic speedometer
- 3 1/8″ 8,000 RPM tachometer
- 2 1/16″ 100 PSI electric oil pressure
- 2 1/16” 100-250 F water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” 240-33 ohm fuel level.
- Sending units are included for the speedometer, oil pressure, water temperature, & fuel gauges.
Mounts into stock Bezel (Not Included).
Auto Meter part # ATM9109 is recommended, if you are using the stock gas tank.
Use part # SN17 to convert the included GM style pulse generator to work with a Ford non electric transmission.
Description
Feature Points
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8″ – 18THD), sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
- Fuel Sender 3262 – Oil Sender 2242 – Water Sender 2258 – 5293 VSS Sensor
- 3/8″ NPT and 1/2″ NPT adapter fittings
- Brackets Included
Additional information
| Weight | 8.75 lbs |
|---|---|
| Dimensions | 19.5 × 12.5 × 6.5 in |
| Gauge Panel Finish | Brushed Finish, Polished Finish |
