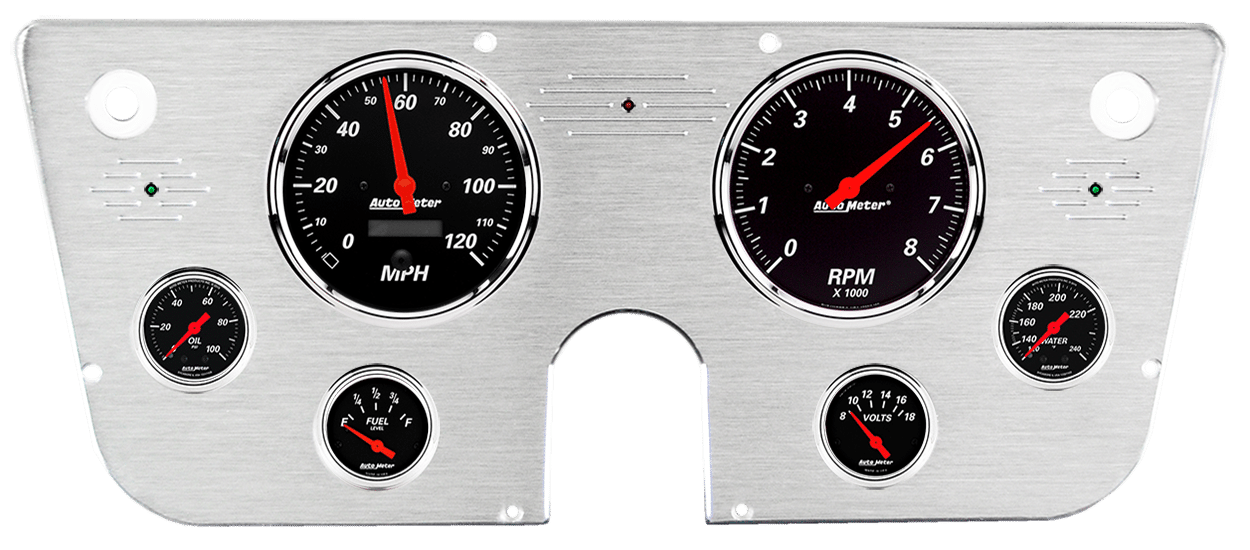

1967-1972 Chevy Truck Aluminum Gauge Panel w/ Auto Meter Designer Black Gauges
Price range: $984.50 through $1,006.50
Includes aluminum dash insert, Auto Meter Designer Black gauges, & turn signal/high beam indicators.
Gauges include:
- 5” speedometer (choose from drop down menu)
- 5″ 8,000 RPM tachometer
- 2 1/16” 100 PSI oil pressure
- 2 1/16″ 100-250 F water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” fuel level (choose from drop down list)
- Sending units are included for the oil pressure & water temperature gauges.
The stock dash must be cut to accept this panel.
Installation Instructions
WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 23 × 12 × 6 in |
| Gauge Panel Finish | Brushed Finish, Polished Finish, Brushed Black Finish |
| Fuel Options | 0-90 ohms (works w/ stock sender), 240-33 ohms (works with ATM3262), 75-10 (Pre 87 Ford), 0-30 ohms (early GM) |
| Oil Pressure & Water Temperature Options | Electric, Mechanical |
