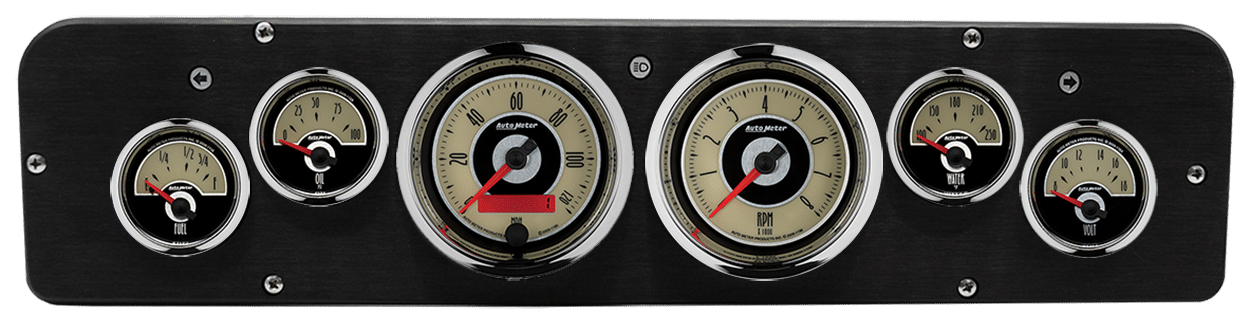

1969-1971 Dodge Truck Aluminum Dash Insert w/ Auto Meter Cruiser Gauges (8mm LEDs)
$1,209.95
Includes aluminum gauge panel, Auto Meter Cruiser gauges, & LED lights (turn signal & high beam indicators).
Gauges include:
- 3 3/8” electric 160 MPH speedometer
- 3 3/8″ 8,000 RPM tachometer
- 2 1/16” 100 psi electric oil pressure
- 2 1/16” 100-250 degree electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” fuel level (choose ohm range from drop down list)
- Sending units are included for oil pressure & water temperature
California Residents: Prop 65 WARNING Birth Defects and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Description
Gauge Features- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Package includes oil pressure sender, water temperature sender, sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
- Oil Sender 2242 – Water Sender 2258
- 3/8″ NPT and 1/2″ NPT adapter fittings
- Brackets Included
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 23 × 7 × 5 in |
| Gauge Panel Finish | Brushed, Brushed Black, Polished |
| Fuel Options | 75-10 ohms (works w/ stock sender, 0-90 ohms (late GM), 240-33 ohms (works w/ ATM3262) |
Be the first to review “1969-1971 Dodge Truck Aluminum Dash Insert w/ Auto Meter Cruiser Gauges (8mm LEDs)”
You may also like…
-
1961-1968 Dodge Truck Aluminum Dash Insert w/ Auto Meter American Muscle Gauges
$1,209.95 Select options This product has multiple variants. The options may be chosen on the product page -
AutoMeter 2198 Universal 6 Gauge Wiring Harness
$149.50 Add to cart -
AUTO METER 9114 DIMMING CONTROL MODULE FOR USE WITH LED LIT GAUGES (UP TO 6)
$46.15 Add to cart
Related products
-
1969-1971 Dodge Truck Billet Aluminum Gauge Panel w/ Dakota Digital VHX Black Alloy Gauges
$1,237.50 Select options This product has multiple variants. The options may be chosen on the product page -

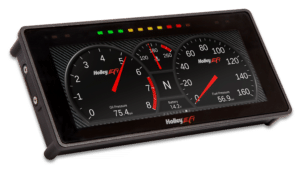

1969-1971 Dodge Truck Aluminum Gauge Panel w/ Holley 6.86 Pro Dash
$1,389.99 Select options This product has multiple variants. The options may be chosen on the product page -

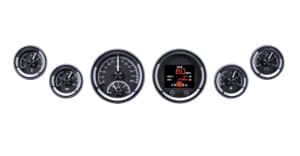

1961-1968 Dodge Truck Aluminum Gauge Panel w/ Dakota Digital HDX Black Alloy Gauges
