1973-1983 Chevy C/K Series Truck Auto Meter Direct Fit ABS Instrument Panel w/ Auto Meter Cobalt Gauges

Name: 1973-1983 Chevy C/K Series Truck Auto Meter Direct Fit ABS Instrument Panel w/ Auto Meter Cobalt Gauges - Boese Engineering
SKU: ATM2137-CB
Availability: InStock

Price range: $1,523.50 through $1,743.50

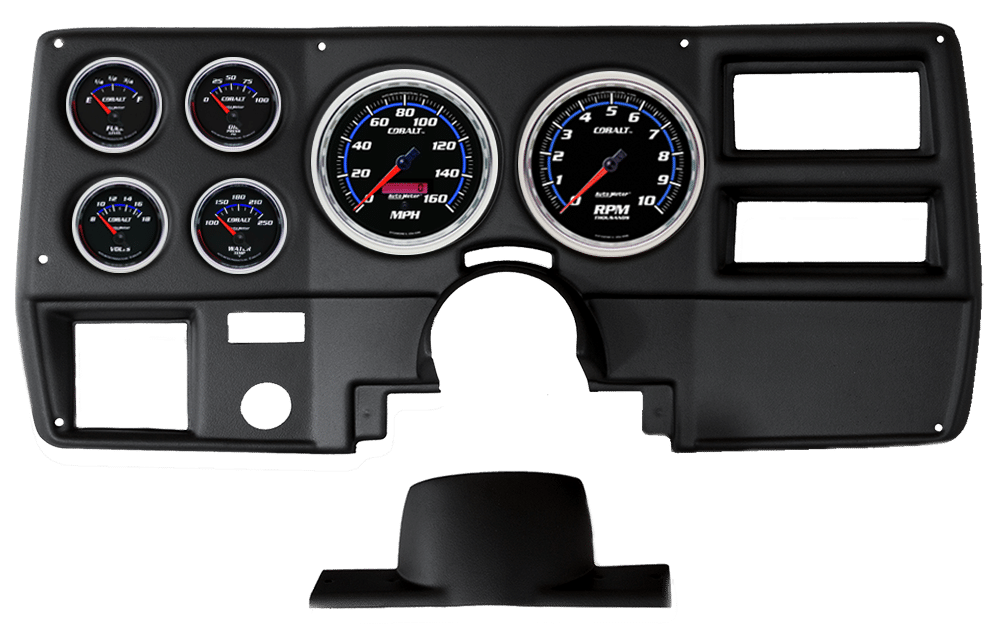

Includes ABS Instrument panel & Auto Meter Cobalt gauges

Gauges include:

5? 160 MPH speedometer (choose from drop down list)
5? 10,000 RPM tachometer
2 1/16? 100 PSI electric oil pressure
2 1/16” 100-250 F electric water temperature
2 1/16” 8-18 VDC voltmeter
2 1/16” fuel level (choose from drop down list)
Sending units are included for the oil pressure & water temperature gauges

Direct Fit replacement for OEM instrument bezel in Chevrolet C/K Series Truck 73-83, Chevy/GMC Suburban and K5 Blazer 73-91 made from thermoformed UV protected ABS material.

Speedometer Options

Fuel Gauge Options

Clear

SKU: ATM2137-CB Category: 1973-1987 Chevy Truck Packages Tags: 73 74 75 Chevy Truck Gauges, 76 77 78 Chevy Truck Gauges, 79 80 81 82 83 84 85 86 87 Chevy Truck Gauges, Auto Meter Cobalt Gauges

Description

Cobalt Feature Points

Modern blue LED through-the-dial lighting provides clear visibility during nighttime use

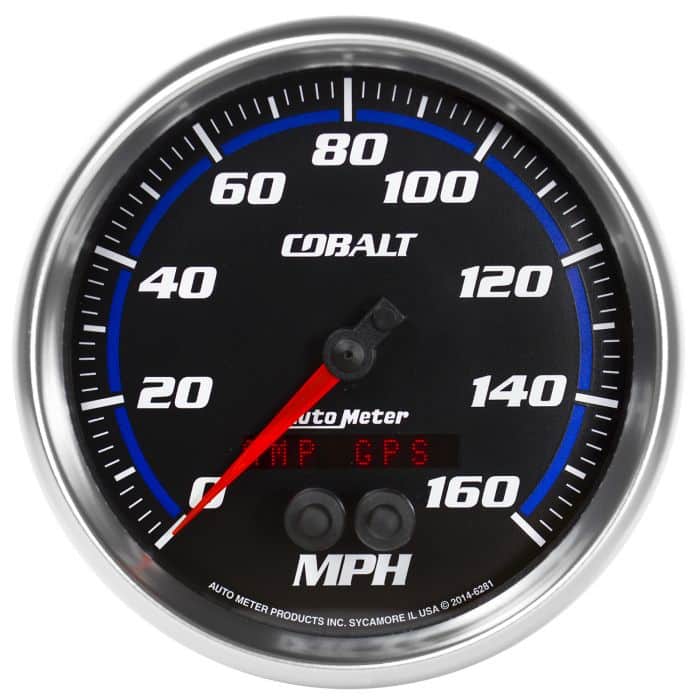

GPS Feature Points

Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
These highly accurate GPS Speedometers include an omnidirectional 10 Hz antenna (10 samples per second) with a 16ft. cable, which is required for operation. The dimensions for the antenna are quite small (1.472 in. x 1.339 in. x 0.508 in.) allowing it to be easily hidden. The GPS antenna utilizes up to 3 GPS satellites simultaneously and samples 10 times per second
No calibration is needed! Just wire up power, ground, and lighting, connect the antenna and you’re ready to go!
The GPS Speedometer’s Rally Nav screen will display pertinent information such as odometer, trip odometer, date/time, GPS coordinates, directional heading, peak speed recall, 0-60 MPH, 60-0 MPH, and inclinometer (pitch and roll).
Gauge kit includes GPS antenna, spade connectors for wiring, mounting hardware, and detailed instructions for installation
12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Plug and Play, no calibration required!
Utilizes up to 3 GPS satellites simultaneously and samples 10 times per second

Ships With

5283 (16 ft. 10 Hz GPS Antenna)

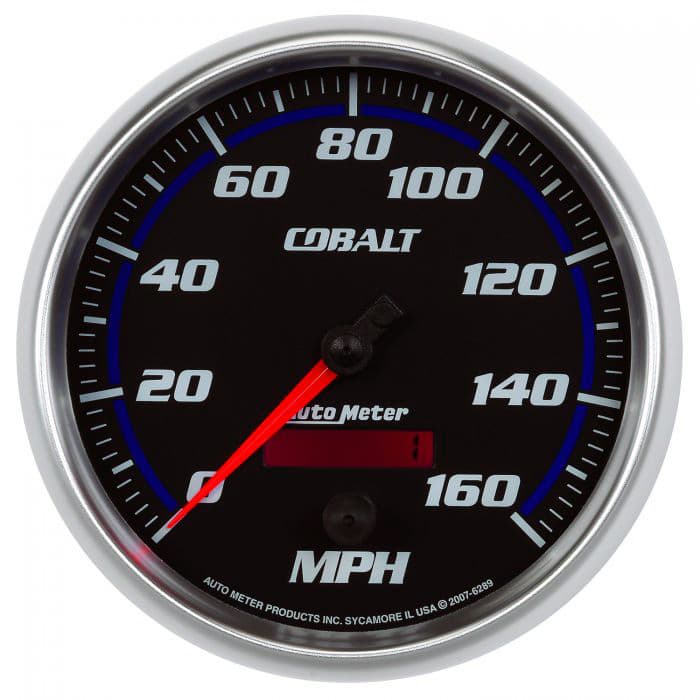

Electronic Speedometer Feature Points

Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
Features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
Compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
Simple push button, 2 mile drive calibration. No dip switches!
Reprogram at any time to accommodate changes in gear ratio or wheel and tire combination.
Gauge kit includes mounting hardware and detailed instructions for installation

*Speedometer sender sold separately

Additional information

Weight	12 lbs
Dimensions	24 × 14 × 10 in
Speedometer Options	160 MPH Electric Speedometer, 160 MPH GPS (built in) Speedometer
Fuel Gauge Options	0-90 ohms (works w/ stock sender), 240-33 ohms (works with ATM3262), 75-10 (Pre 87 Ford)
