Dakota Digital Round Universal Analog 6 Gauge Black Alloy Kits (Choose lighting)
$1,071.13

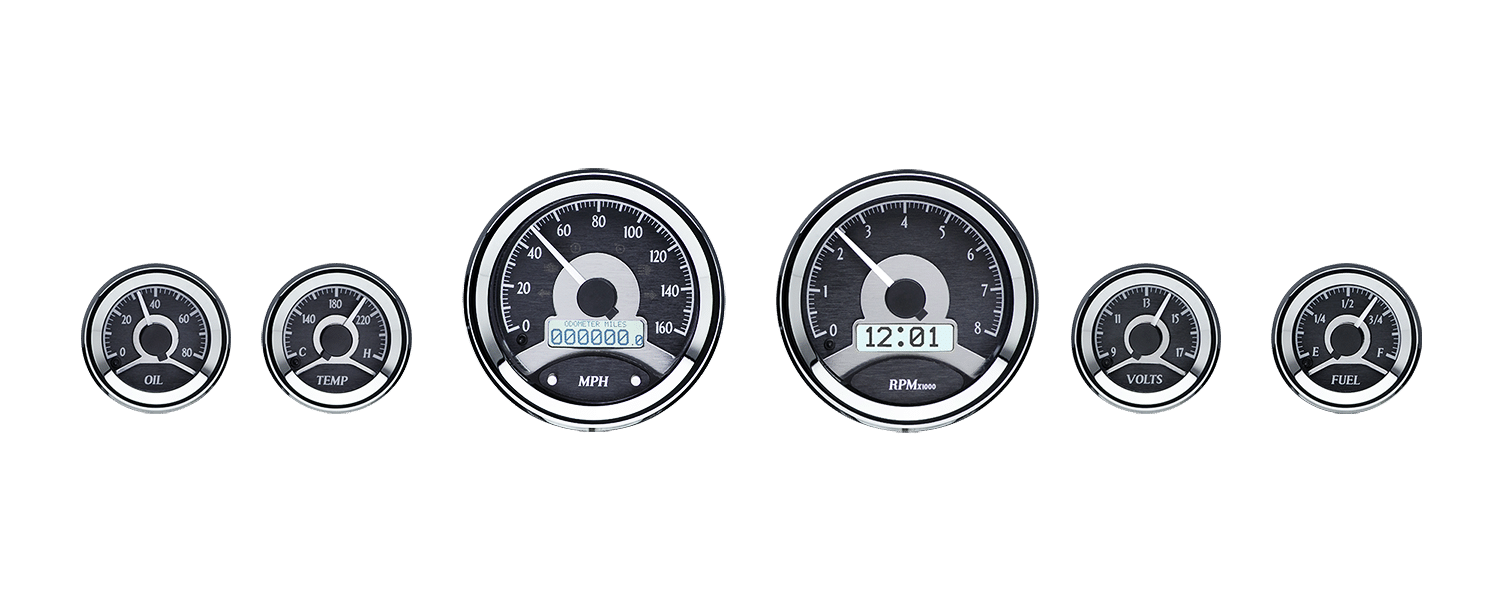

Dakota Digital Black Alloy 6 Gauge Kit
Gauges include: Speedometer, tachometer, oil pressure, water temperature, voltmeter, & fuel level.

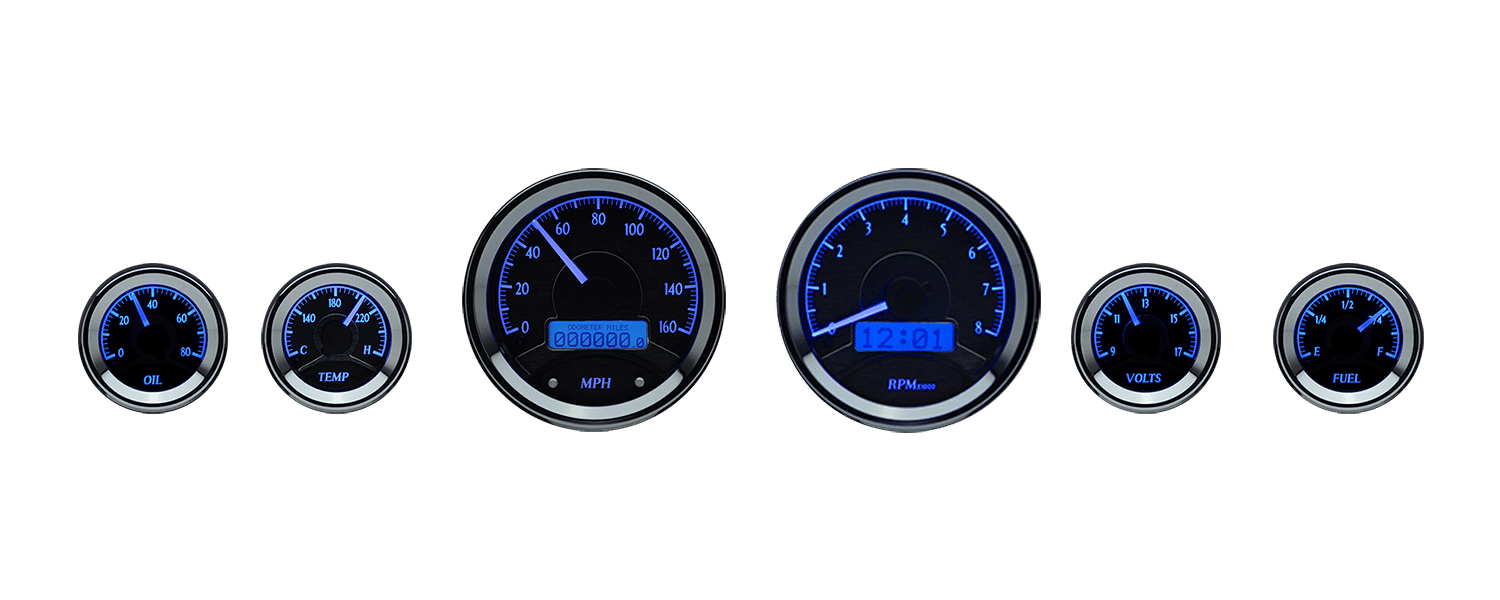

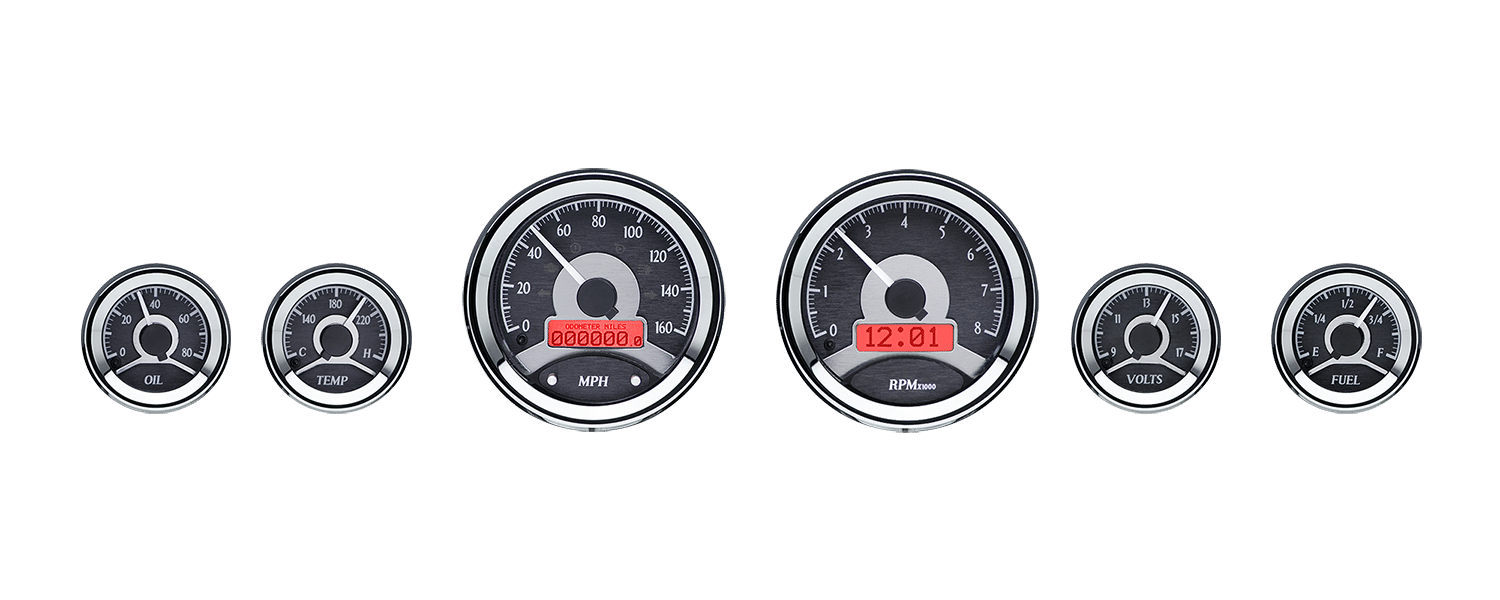

Choose between blue, red, or white through the dial LED lighting.
Description
| Analog Gauges |
|
|
| Speedometer |
| ·0 -160 MPH (optional metric version 0- 255 kmh) |
|
|
| Tachometer |
| ·0- 8,000 RPM |
|
|
| Oil Pressure |
| ·0- 80 psi |
|
|
| Water Temperature |
| ·100- 260ºF (optional metric version 40- 120ºC) |
|
|
| Fuel Level |
| ·E, 1/4, 1/2, 3/4, F |
|
|
| Voltmeter |
| ·9- 17 VDC |
|
|
| Lighting |
| ·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face. |
|
|
| Digital Message Centers |
|
|
| Standard Displays |
| ·Odometer (One time user settable, Million Mile) |
| ·Dual (A/B) Trip Meter (0- 9,999.9) |
| ·Clock (12 hour) |
|
|
| Performance Meters |
| ·0- 60 MPH Timer (0- 100 kmh) |
| ·1/4 mile time |
| ·1/4 mile end speed (trap speed) |
| ·High speed recall |
| ·High RPM recall |
|
|
| Gauges |
| ·Speedometer (0- 255 MPH/kmh) |
| ·Tachometer (0- 9,900 RPM) |
| ·Oil Pressure (0-100 psi displayed in 1 psi increments) |
| ·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments) |
| ·Voltmeter (9- 17 VDC) |
| ·Fuel Level (0-99% full) |
|
|
| Lighting |
| ·Auto-contrasting LCD display for optimal view in the brightest of sunlight. |
| ·LED backlit at night to match/ complete the look at night. |
|
|
| Built-in Indicators |
| Indicators |
| ·Turn Signals (Left/ Right) |
| ·High Beam |
| ·Check Engine |
| ·Parking Brake |
| ·Cruise Control (On/ On & Engaged when vehicle is equipped) |
| ·Gear Position (Optional GSS-3000 sensor required) |
| ·4 x 4 (When vehicle is equipped) |
| ·Wait to Start (When vehicle is equipped) |
 **Not all OEM indicator lamp functions will be replaced.
|
|
|
| Included Sensors |
|
|
| Water Temperature |
| ·1/8″ NPT, ground isolated sensor with a 10 ft harness. |
|
|
| Oil Pressure |
| ·1/8″ NPT solid state sensor with a 10 ft harness. |
|
|
| Cable Driven Speed Sensor/ Generator |
| ·Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5″ clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.) |
|
|
| Bushings |
| ·Each kit comes with 1/8″ to 1/4″, 3/8″ and 1/2″ NPT bushings along with bushings for 12mm and 16mm x 1.5 threads. |
|
|
| Control Box Dimensions |
| 5.5″ x 3.5″x 1″ |
|
|
| Calibration |
|
|
| Pushbutton |
| ·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers. |
Additional information
| Weight | 5.5 lbs |
|---|---|
| Dimensions | 6.5 × 4.5 × 17.5 in |
| LED Lighting | White, Blue, Red |
Be the first to review “Dakota Digital Round Universal Analog 6 Gauge Black Alloy Kits (Choose lighting)”
Related products
-

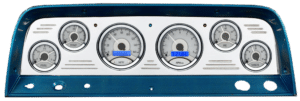

1964-1966 Chevy Truck Billet Aluminum Gauge Panel w/ Dakota Digital VHX Silver Alloy Gauges
$1,209.95 Select options This product has multiple variants. The options may be chosen on the product page -
1973-1987 Chevy/GMC Pickup VHX Instruments – Silver Alloy w/ White Lighting
$966.63 Add to cart -
Dakota Digital 62 – 84 Toyota FJ40 Land Cruiser Analog Gauge Dash Kit VHX-62T-FJ Silver w/ Blue Lighting
$966.63 Add to cart -

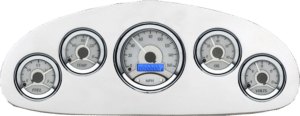

1934 Chevy Master Billet Aluminum Gauge Panel w/ Dakota Digital VHX-1050 Silver Alloy Gauges
