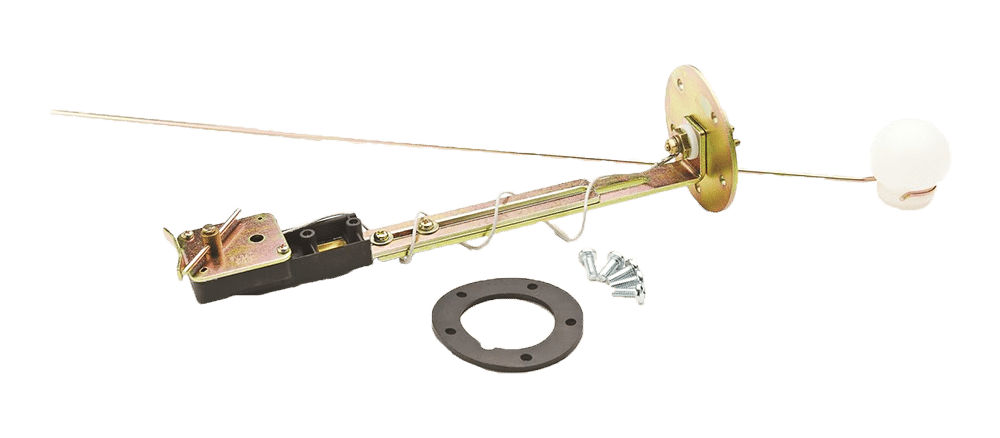

SEN-06-1 Dakota Digital Universal Fuel Level Sender


SEN-06-1 – Universal Automotive Fuel Level Sender with an adjustable float will accommodate many aftermarket fuel cells.

  • Resistance range: 10 ohms empty -180 ohms full (VDO style)
  • GM Style 5-bolt mounting pattern: 2.8” overall flange size,  2.125” bolt circle, 1.7” hole size
  • 5x 10-32 x ½” mounting screws and gasket included
  • Adjustable to tank depths of 6-23”
  • Top-mount applications only; without fuel pickup or return line
  • Compatible with all Dakota Digital Automotive gauges (not compatible with Motorcycle or UTV)

*Due to the universal nature of this sensor, verify the specifics of your application before ordering

SEN-06-1 Dimensions

Additional information

Weight 1.5 lbs
Dimensions 13 × 5 × 5 in
