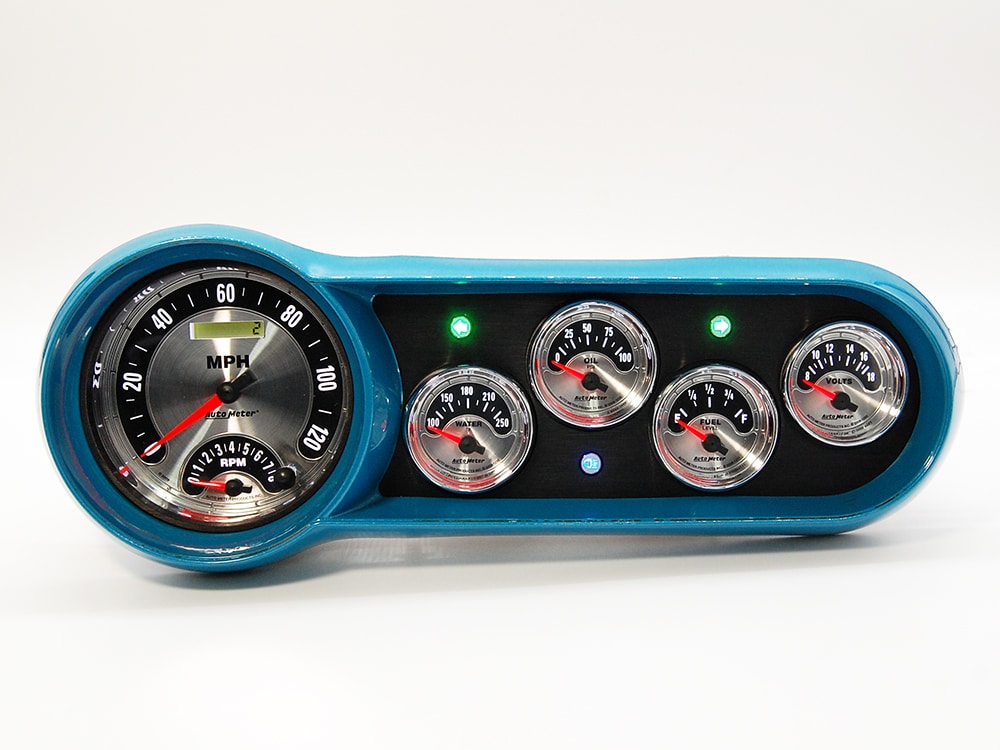

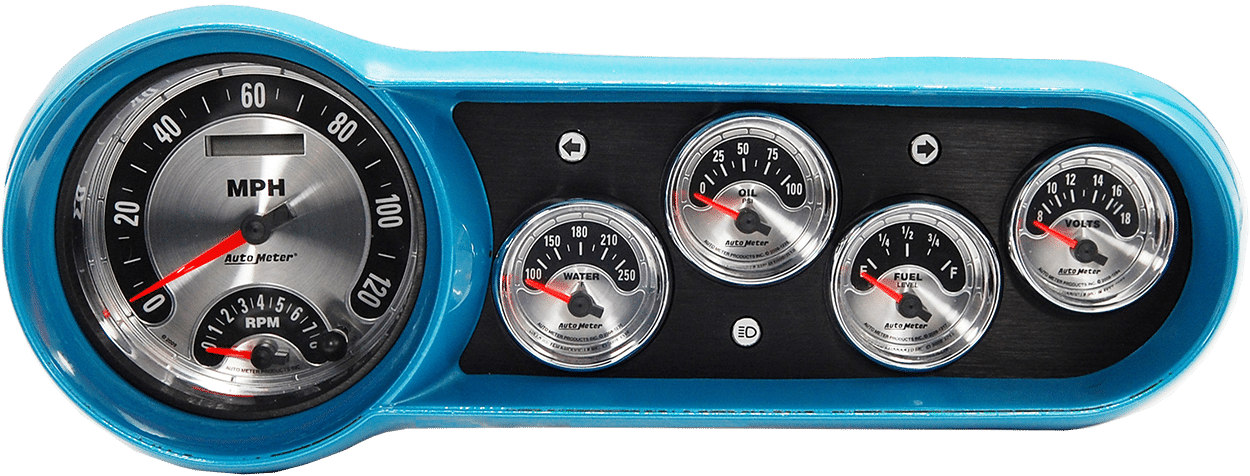

1953-1954 Chevy Car Billet Aluminum Dash Insert w/ Auto Meter American Muscle Gauges
$1,143.95
Includes brushed and black anodized aluminum gauge panel, Auto Meter American Muscle gauges, & LED lights (turn signal & high beam indicators).
Gauges include:
- 5” 120 MPH/8,000 RPM electric speedometer/tachometer combination gauge
- 2 1/16” 100 psi electric oil pressure
- 2 1/16” 100-250 degree electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” fuel level (choose ohms from drop down menu)
- Sending units are included for oil pressure & water temperature gauges
Mounts into stock bezel (not included).
Installation Instructions
WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Description
Gauge Features- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
- Oil Sender 2242 – Water Sender 2258
- 3/8″ NPT and 1/2″ NPT adapter fittings
- Brackets Included
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 17.75 × 9 × 5 in |
| Fuel Gauge Options | 240-33 ohms (works w/ ATM3262), 0-90 (late GM), 75-10 (early Ford) |
