1953-1954 Chevy Car Gauge Panels w/ Auto Meter Black Diamond Gauges
$1,127.50

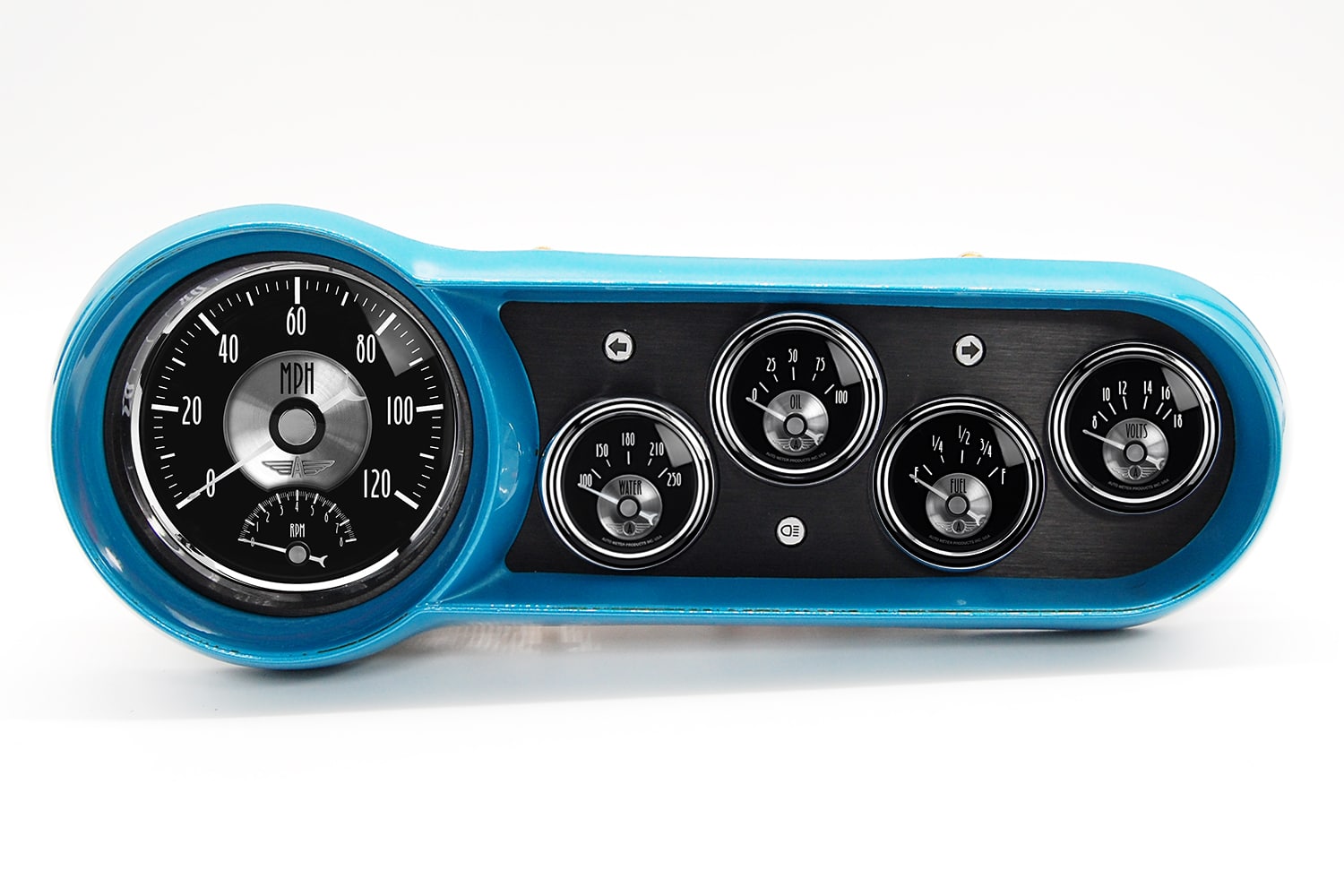

Includes aluminum gauge panels (brushed & black anodized), Auto Meter Black Diamond gauges, and LED turn signal & high beam indicators.
Gauges include:
- 5” 120 MPH / 8,000 RPM speedometer/tachometer combination gauge
- 2 1/16” 100 PSI electric oil pressure
- 2 1/16” 100-250 F electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16″ fuel level (choose from drop down menu)
- Includes oil pressure & water temperature senders
Mounts into stock bezel (not included).
Installation Instructions
WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Description
Gauge Features- Modern LED through-the-dial lighting provides clear visibility during nighttime use
- Package includes oil pressure sender, water temperature sender, sending unit adapters (1/4″, 3/8”, and 1/2″ NPT adapters), mounting hardware, and detailed instructions for installation.
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Oil Sender 2242 – Water Sender 2258
- 1/8″ NPT Male to 1/8″ compression fitting, 1/8″ NPT Female to 1/8″ compression fitting, 1/8″ NPT to 1/4″ NPT bushing, 3/8″ NPT and 1/2″ NPT adapter fittings.
- Brackets Included
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 17.75 × 9 × 5 in |
| Fuel Gauge Options | 240-33 ohms (works w/ ATM3262), 0-90 ohms (late GM) |
